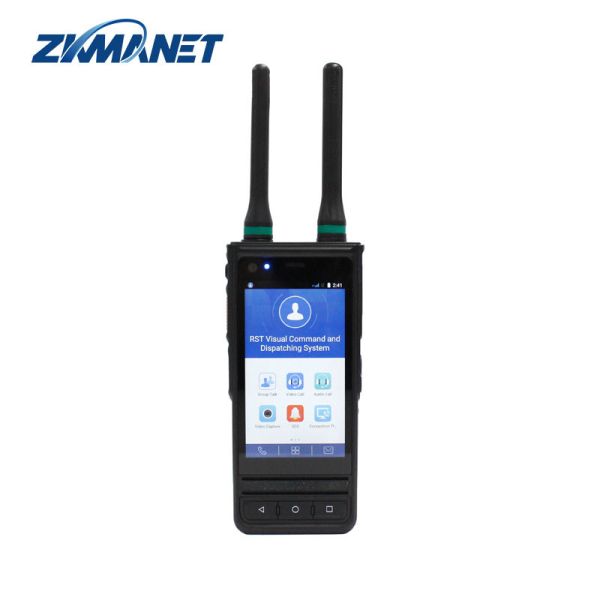

The ZKManet2111UM is a professional intelligent terminal that
supports MESH, 4G, WIFI, Bluetooth and DMR intercom. It can do HD video transmission and voice communication simultaneously, and it takes into account the functions of remote
monitoring (satellite positioning, audio and video capture and
upload) and command information interaction. In addition, the
terminal has daily essential functions such as calling and sending
text messages, and supports the installation of third-party
applications. It can be applied to Public Security, Armed Police, Fire Control,
Civil Air Defense and to establish real-time and rapid communication and unified
coordination and command.
* MESH, 4G and DMR intercom integrated* Supports WIFI, Bluetooth and GPS/BD* AES encryption* Ruged IP68* Buckle design frees both hands* Compact size and light weight* Flexible networking and rapid deployment1- MESH Antenna
2- Front Camera
3- Light Sensor
4- Custom Key
5- PTT Antenna
6- Earphone
7- 4.0 HD Screen
8- Main Mic
9- Louderspeaker
10- Rear Camera
11- Flash Light
12- Vice Mic
13- Battery
14- 8.7V Dock Charge
15- Battery Lock
16- Power Button
17- PTT Button
18- POC Button
19- Fingerprint Recognition (Optional)
20- Headset Interface (USB/OTG)
21- Volume Up/Down Buttons
22- Type-C Interface (USB2.0)
| MESH | Frequency | 1.4GHz (customizable) |
| Bandwidth | 20MHz (Typical) |
| RF Channel | 1T1R |
| Output Power | 23dBm (200mw) |
| Capacity | 32 nodes |
| Data Rate | 30Mbps (Max) |
| Encryption | AES |
| System | OS | Android 8.1 |
| CPU | MTK Octa-core 2.0GHz |
| Memory | 64GB ROM+4GB RAM |
| Screen | IPS 4 inches capacitive screen, 5-point touch, FHD 1136*640 |
| Camera Pixel | Sensor type: CMOS
Front: 5 million pixels
Rear: 13 million pixels |
| Voice | Dual silicon Mic, 2W loudspeaker |
| Data | USB 2.0, 20-pin, supports headset, USB camera, standard type C 2.0
interface |
| Network | 4G Public | GSM, WCDMA, EVDO, TD-SCDMA,
TDD/FDD-LTE |
| WI-FI | 802.11 b/g/n, 2.4G/5.8G |
| Bluetooth | BT4.0 |
| GPS | GPS/BEIDOU/GLONASS |
| NFC | 13.56MHz Active and passive
Peer-to-Peer-ISO/IEC 18092 -NFCIP-1 Initiator & Target Passive mode
- Reader/Writer- NFC Forum Type 1/2/3/4/5 tags - ISO/IEC 15693 -
MIFARE Classic(a)(b) - Thinfilm (ex Kovio) Barcode• Active mode -
Card Emulation - ISO/IEC 14443 Type A & B - JIS X 6319 - 4 - MIFARE
Classic(a)(b) through SWP-CLT |
| DMR | DMR digital analog combo, supports all voice and data services
defined by the standard, and various encryption methods, high power
4W, low power 2W, U section 400-470MHz / Police use 350-400MHz / V
section 136-174MHz optional |
| Physical | Dimensions | 148*64*30mm (w/o antenna) |
| Weight | 430g (w/ battery) |
| Working Temp. | -20ºC+65ºC |
| Protection Level | IP68 |
| Electrical | Power Supply | 7.6V Lithium Polymer Battery |
| Battery Capacity | 19Wh |
| Power Consumption | <37dBm Average |
