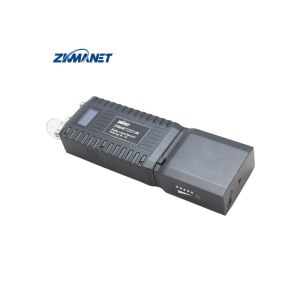

The ZKManet2251UM is a 4W handheld mesh network device with a
transmission rate of up to 82 Mbps. It supports various
communication combinations, making it suitable for different
scenarios. It features a built-in display screen that can show
device status and connection status in real time. The device can be
worn by an individual, used in conjunction with a tripod relay, or
installed at fixed points. It can also be utilized on moving
vehicles, ships, robots, drones, and unmanned boats. With one-click
operation, it can be used anytime and anywhere without the need for
configuration or parameter changes.
* Supports HDMI input
* Supports voice intercom
* Supports WIFI connection
* Data rate up to 82Mbps
* Supports GPS/BD
* Full-duplex two-way data transmission
* Full IP transparent data transmission
* IP66
* Easy Operation
Quick Deployment
Mesh self-organizing network technology enables rapid mobile
deployment, allowing for the establishment of a reliable wireless
communication network in a short period of time to meet the
timeliness requirements of emergency communications.
Strong Stability
Mesh self-organizing network technology features self-healing
capabilities, ensuring that even if some devices fail, the entire
network can continue to operate stably, preventing communication
interruptions.
High Security
Advanced encryption algorithms and security authentication
mechanisms are employed to effectively safeguard the security and
confidentiality of communication data, preventing information
leakage and malicious attacks.
| Model | ZKManet2251UM | Brand | ZKMANET |
| RF Parameters | Frequency | 1.4GHz (Customizable) |
| Bandwidth | 20MHz (Typical) |
| RF Channel | 2T2R |
| Output Power | 2*2W |
| Range | 20-30km (LOS) |
| Network Parameters | Network Size | 64 Nodes |
| Data Rate | 82Mbps(Max) |
| Encryption | AES |
Physical/
Environment | Dimensions | 246.5*82*42mm |
| Weight | 1.2kg (w/ battery) |
| Working Temp | -20ºC~+65ºC |
| IP Rating | IP66 |
| Electrical Parameters | Power Supply | 18.5V |
| Battery Capacity | 48Wh |
| Power Consumption | <12W |
1. Main body power input port
2. HDMI input (mini HDMI interface)
3. WIFI antenna interface
4. LAN input interface
5. Mic input interface
6. GPS/BD antenna interface
7. MESH antenna interface-1
8. Power push button
9. Signal Indicator
10. MESH antenna interface-2
1. 3.5mm audio interface
2. Configuration buttons (optional)3. Battery locker - push to remove battery
4. Battery Indicator
5. Battery Charging Port
