Indoor ommi directional antenna 350-4200MHz

    Buy cheap Indoor ommi directional antenna 350-4200MHz from wholesalers

    Buy cheap Indoor ommi directional antenna 350-4200MHz from wholesalers
    • Buy cheap Indoor ommi directional antenna 350-4200MHz from wholesalers

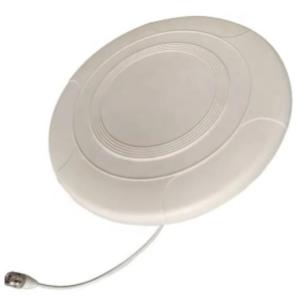

    Indoor ommi directional antenna 350-4200MHz

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-ANT-ODA-3542-ON-150
    Certification : RoHS/ISO9000
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 50pcs per day
    Delivery Time : depends on your quantity
    • Product Details
    • Company Profile

    Indoor ommi directional antenna 350-4200MHz

    ​Indoor ommi directional antenna 350-4200MHz


    • Wide Frequency Band 350-4200MHz
    • IM3 <-150dBc @ 2x2 W
    • N-female / 4.3-10-Female

    VN-ANT-ODA-3542-ON-150.pdf

    Electrical Specifications
    Frequency rangeMHz350-366806-866880-9601710-27003300-4200
    PolarizationVertical
    GaindBi2.0±0.54.0±0.55.0±1.06.0±1.0
    Horizontal beam widthº360
    Vertical beam widthº12090855540
    VSWR≤1.5≤2.0
    Intermodulation IM3dBc≤-140 or -150 (2X20W)
    ImpedanceΩ50
    Power Handlingw50
    Lightning ProtectionDC Ground
    Mechanical SpecificationsInstallation Diagram
    Connector typeN-Female
    Connector Positionbottom
    DimensionsmmØ380x125
    Antenna weightkg1.25
    Radiating element materalAl
    Radome material and ColorABS, White
    Mounting kitMounts to ceiling
    Operating temperature range°C-40~+65
    Operational Humidity%< 95
    900MHz1710MHz3500MHz
    Horizontal PatternVertical Pattern
