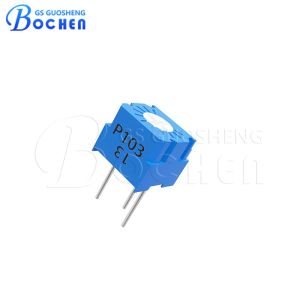

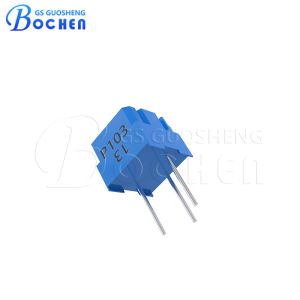

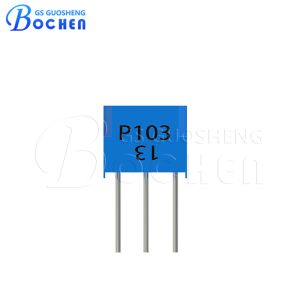

    3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer

    Ask Lasest Price
    Brand Name : BOCHEN
    Model Number : 3323P
    Certification : RoHS, Reach
    Price : $0.085 - $0.90/Piece
    Payment Terms : T/T,L/C,D/A,D/P,Western Union
    Supply Ability : 10000000 Pieces Per Month
    Delivery Time : 1-7 Workdays
    • Product Details
    • Company Profile

    3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer

    3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer


    Description


    The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls.


    Feature


    ■ Adjustable resistance.
    ■ Compact design.
    ■ Smooth operation.
    ■ Durable construction.
    ■ Versatile applications.



    Specification


    Electrical CharacteristicsNominal Resistance Range10Ω~5MΩ
    Resistance Tolerance±10%; ±20%
    Terminal Resistance≤±1%R or 3Ω
    Contact Resistance Variation (CRV)≤3%R or 3Ω
    Insulation Resistance500 Vdc. 100 megohms Min.
    Withstand Voltage101.3KPa, 500 Vac; 8.5KPa, 250 Vac
    Dielectric Strength500 Vac(1 Min.)
    Electrical Travel220°
    Environment CharacteristicsWeld Heat Resistance250℃, 10 Secs.
    Rated Power(300 volts max.)70℃, 0.5W; 125℃, 0W
    Temperature Range-55°C ~ + 125°C
    Temperature Coefficient±250, ±100 ppm /°C
    Temperature VariationΔR≤±3%R, Δ(Uab/Uac)≤±1%
    Collision20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
    Vibration100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
    Electrical Endurance At 70°C1000 hours @ 70℃ Rated Power; ΔR≤±3%R
    Rotational Life200 Cycles, ΔR≤±3%R
    Physical CharacteristicsTotal Mechanical Travel250°
    Starting Torque≤25 mN.m
    Clutch Torque≤35 mN.m



    Dimension


    Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.



    Packaging

    Packaging Specification: 50 pieces/tube, 5000 pieces/carton.


    Application


    ■ Audio equipment.
    ■ Consumer electronics.
    ■ Industrial controls.
    ■ Robotics and automation.
    ■ Power supplies.
    ■ Measurement and testing instruments.
    ■ Automotive electronics.
    ■ Telecommunications.



    Advantage


    • Factory direct supply, no middlemen.
    • Completed certificates such as RoHS, REACH, etc and best quality assurance.
    • Sufficient production capacity, short delivery time.
    • Professional after-sales service team.
    • OEM & ODM available.
