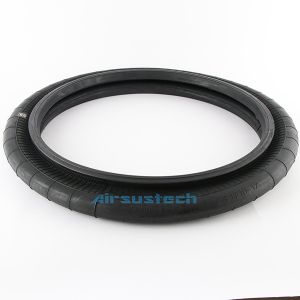

    FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment

    Ask Lasest Price
    Brand Name : Contitech
    Model Number : FS 1710-12 RS
    Certification : ISO/TS16949:2009
    Price : USD99.9-199.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment

    FS1710-12RS One Convoluted Rubber Air Spring Shock For Industrial Equipment


    Refer No.


    Contitech FS 1710-12 RS

    Continental FS 1710-12 RS

    ContiTECH FS1710-12 RS

    Continental FS1710-12 RS

    Firestone W01-358-7727

    Firestone W01 358 7727

    Firestone W013587727

    Firetone W01-358-1026

    Firestone W01 358 1026

    Firestone W013581026


    Specifications and Detailed Technical Parameters


    Top Cover Plate Screw: 24 ×M10

    Plate Diameter: 482mm

    Rubber Bellow Diameter: 517mm

    Height: 55mm to 177mm


    Min. pressure: 0 bar

    Return force to min.height: ≤730N

    Overall weight with clamped plates: 8.7kg


    Vibration isolation - dynamic characteristic values

    Design Height H: recommended 125mm, minimum 110mm

    Pressure p[bar]345678Vol. V[l]
    Force(Load) [KN]53.670.687.5110126.7145.725
    Spring rate [N/mm]101912881551189721542448
    Natural frequency [Hz]2.22.22.12.12.12.1

    Pneumatic application-static characteristic values

    Force F[KN]

    Pressure p [bar]345678Vol. V [l]
    Height H[mm]14048.264.481.29811513228
    12053.872.190.610912814724
    10060.280.210112114216219
    806586.610913015217415
    6067.890.211313615818195

    Applications

    Pulp and paper industry

    Lumber mills

    Lift tables

    Tooling and machining system

    Energy production

    Tooling robotics and automation

    Component assembly

    Automotive assembly

    Medical equipment

    Conveyor systems

    Packaging


    Advantage

    Air springs can adjust stiffness and bearing capacity
    The air spring can change the height
    Air spring has higher shock absorption and noise reduction function
    Air springs are lighter
    Air springs have higher fatigue life
    Air springs are more economical


    The related picture

    Fs1710-12RS One Convoluted Rubber Air Spring Shock for Industrial Equipment


    Fs1710-12RS One Convoluted Rubber Air Spring Shock for Industrial Equipment
