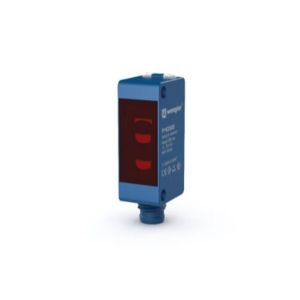

WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68

    Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers

    Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers
    • Buy cheap WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68 from wholesalers

    WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68

    Ask Lasest Price
    Brand Name : WENGLOR
    Model Number : U1KT001
    Certification : CE
    Price : USD$210
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pc
    Delivery Time : 4-6weeks
    • Product Details
    • Company Profile

    WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68

    Ultrasonic Data

    Working range, reflex sensor30 ... 400 mm
    Working range, through-beam sensor30 ... 800 mm
    Setting Range30 ... 400 mm
    Reproducibility maximum4 mm
    Linearity Deviation4 mm
    Resolution0.5 mm
    Ultrasonic Frequency325 kHz
    Opening Angle< 12 °
    Service Life (T = +25 °C)100,000 h
    Switching Hysteresis1 % *

    Electrical Data

    Supply Voltage18 ... 30 V DC
    Current Consumption (Ub = 24 V)< 20 mA
    Switching frequency, reflex sensor30 Hz
    Switching frequency, through-beam sensor70 Hz
    Response time, reflex sensor17 ms
    Response time, through-beam sensor8 ms
    Temperature Range-30 ... 60 °C
    Number of Switching Outputs2
    Switching Output Voltage Drop< 2.5 V
    Switching Output/Switching Current100 mA
    Synchronous Modeup to 40 sensors
    Short Circuit Protectionyes
    Reverse Polarity Protectionyes
    Overload Protectionyes
    Lockableyes
    InterfaceIO-Link V1.1
    Data Storageyes
    Protection ClassIII

    Mechanical Data

    Setting MethodTeach-In
    Housing MaterialPlastic, PC+ABS
    Plastic, PC
    Sensing faceEpoxy resin/glass bubble mixture
    Plastic, PC+ABS
    Plastic, PU
    Degree of ProtectionIP68
    ConnectionM8 × 1; 4-pin
    Weight6 g

    Safety-relevant Data

    MTTFd (EN ISO 13849-1)1,106.71 a

    Output

    PNP NOyes
    Programmable error outputyes
    IO-Linkyes

    Adjustable parameters

    OutputNPN
    PNP
    Error Output
    CircuitNC
    NC/NO
    NO
    Other parametersFilter
    Adjustable sonic cone
    Adjustable sensor mode
    Teach mode
    Through-beam mode
