Introduction of Indfustrial Pressure sensor Transmitter:

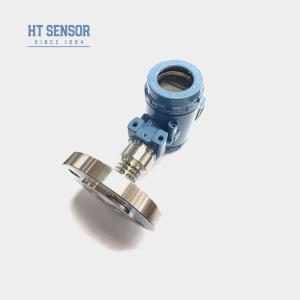

The BP93420-IIIF High temperature pressure transmitter utilizes the
HT series silicon resistive film oil-filled core as the signal
measuring element. Its process connection features the direct
welding of a 316L isolation diaphragm and matching flange, ensuring
precise pressure measurement. The customized heat sink is designed
to adapt to high-temperature environments. Within the stainless
steel housing, the signal processing circuit converts the sensor
signal into a standard output signal (4-20mA).
| Performance Parameters of Indfustrial Pressure sensor Transmitter |
| Measurement Range | -100kPa…0kPa ～ 35kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70℃(≤10mpa,customizable) |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~120℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~4kg |
Product Features of Indfustrial Pressure Sensor Transmitter:
- 1. Custom wide measuring range, a variety of pressure interface
options
2. A variety of output signal options
3. Button adjustable zero and full scale
4. High precision, multiple aseptic process connection
Applications of Indfustrial Pressure Sensor Transmitter:
- Suitable for 316L non-corrosive gas and liquid measurement.
- Used for aseptic processing in medical, biopharmaceutical, food
hygiene and other industries.
- It is used in the paper and chemical industries, as well as in
sewage levels and beverages.
| Output Signal of Indfustrial Pressure Sensor Transmitter | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| Order Guide of Indfustrial Pressure sensor Transmitter |
| BP93420XX | Pressure Transmitter |
| Code | Outline Construction |
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter | | |
| IC | High-temperature Pressure Transmitter | | |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Other |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
