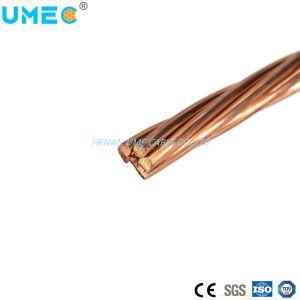

    Bare Copper Conductor 7 Wire Stranded for Overhead Power Transmission 10AWG 8AWG 6AWG

    Ask Lasest Price
    Certification : ISO9001, CE, SGS TUV
    Supply Ability : 7000km Per Month
    • Product Details
    • Company Profile

    Bare Copper Conductor 7 Wire Stranded for Overhead Power Transmission 10AWG 8AWG 6AWG


    Product Description

    ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
    Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG

    Applications
    Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications.
    Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.


    Specifications
    B-1 Hard-Drawn Copper Wire.
    B-2 Medium-Hard Copper Wire.
    B-3 Soft or Annealed Copper Wire.
    B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
    B-33 Tinned Conductors
    B-787 19 Wire Combination Unilay-Stranded Soft copper wire.

    Product Parameters


    Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
    SizeSectionNumber of WiresWire DiameterTotal DiameterResistance DC @ 20°CMinimun Elongation in 10 In. Wire before Stranding (254 mm)Total Weight
    AWG / MCMCmilmm²mmmmΩ/ km%kg / km
    226400.32470.2430.7354.2152.97
    201,0200.51770.3070.9234.0204.69
    181,6200.82170.3861.1621.4207.46
    162,5801.30770.4881.4613.52011.87
    144,1102.08370.6151.858.442518.87
    126,5303.30970.7762.335.312530.00
    1010,3805.2670.9782.933.342547.72
    815,5107.85971.203.592.242575.86
    626,24013.371.564.671.3225121
    441,74021.1571.965.880.83125192
    266,36033.6272.477.420.52325305
    183,69042.41191.698.430.41525385
    1/0105,60053.49191.899.470.32925485
    2/0133,10067.43192.1310.60.26125611
    3/0167,80085.0192.3911.90.20725771
    4/0211,600107.2192.6813.40.16430972
    250250,000127372.0914.60.138251,149
    300300,000152372.2916.00.116251,379
    350350,000177372.4717.30.0994251,609
    400400,000203372.6418.50.0866301,838
    500500,000253372.9520.70.0695302,298
    600600,000304612.5222.70.0578252,758
    700700,000355612.7224.50.0495303,216
    750750,000380612.8225.30.0463303,447
    800800,000405612.9126.20.0434303,676
    900900,000456613.0927.80.0386304,136
    1,0001,000,000507613.2529.30.0347304,596
    Certifications
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG
    UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
    Packaging & Shipping
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG

    Testing

    HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!


    Production:

    • Raw material inspection and test
    • Production process test
    • Unqualified product control
    • Regular test and examination
    • Finished product inspection
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG

    Customer Visit

    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG

    More Products
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG
    Hard Drawn Bare Copper Conductor 7 Wire Stranded 10AWG 8AWG 6AWG

    Company Profile
    UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.
    UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with a most competitive price within the market.
