NXPA30-678MHz200W UAV Jammer RF Modules High Power Wideband RF Amplifier Module

    Buy cheap NXPA30-678MHz200W  UAV Jammer RF Modules High Power Wideband RF Amplifier Module from wholesalers

    Buy cheap NXPA30-678MHz200W  UAV Jammer RF Modules High Power Wideband RF Amplifier Module from wholesalers
    • Buy cheap NXPA30-678MHz200W  UAV Jammer RF Modules High Power Wideband RF Amplifier Module from wholesalers
    • Buy cheap NXPA30-678MHz200W  UAV Jammer RF Modules High Power Wideband RF Amplifier Module from wholesalers

    NXPA30-678MHz200W UAV Jammer RF Modules High Power Wideband RF Amplifier Module

    Ask Lasest Price
    Brand Name : NENGXUN
    Model Number : NXPA30-678MHz200W
    Price : The price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000
    Delivery Time : 5-8DAYS
    • Product Details
    • Company Profile

    NXPA30-678MHz200W UAV Jammer RF Modules High Power Wideband RF Amplifier Module

    PN:NXPA80-1000MHz100W


    • Small size, Low power consumption, good stability;
    • High linearity and Intermodulation;
    • Shape structure can be customized
    • Products can be developed according specification;
    • Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

    Parameters
    Frequency

    20MHz~1000MHz


    Max output Power (CW)≥ 43dBm
    Gain≥ 43dB (customized)
    Gain Flatness≤ 2±1dB
    Input VSWR≤ 1.6
    Input power0±2dBm
    Max Input+6dBm
    Temperature protectionOver 80℃ protection,with open circuit protection
    PTT portDefault off; 3.3~5V on
    VCC/Current reference28V/7A
    Working voltage+28V~ +32V
    Working current≤3-5A
    Spurious≤ -65dBc
    Harmonic≤ -11dBc
    Operating Temperature-30℃~+55℃
    RF ConnectorSMA-F
    Power Supply Interfacefeedthru capacitor

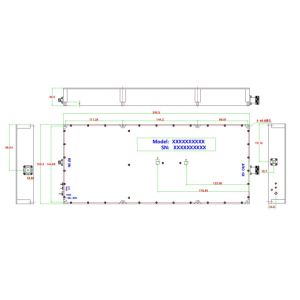

    Dimensions(mm)/Weight≤138.5×80×24.5mm (without connectors), ≤450g
    Installation methodRadiator shall be installed for power amplifier test
    Package1pcs/box


    Support and Services:

    RF Power Amplifier Technical Support and Services
    • Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
    • Provide troubleshooting and repair services.
    • Provide replacement parts and components.
    • Answer customer inquiries and provide product information.
    • Provide technical training for customers.
    • Provide warranty service.
