Madagascar Full Type 20Tons 30Tons Small Truck Farm Wagon Trailers
With Turntable Drawbar
Welcome to Qindao Juyuan,Customer first,Integrity based. ---------AOTONG TRAILER
Product Description

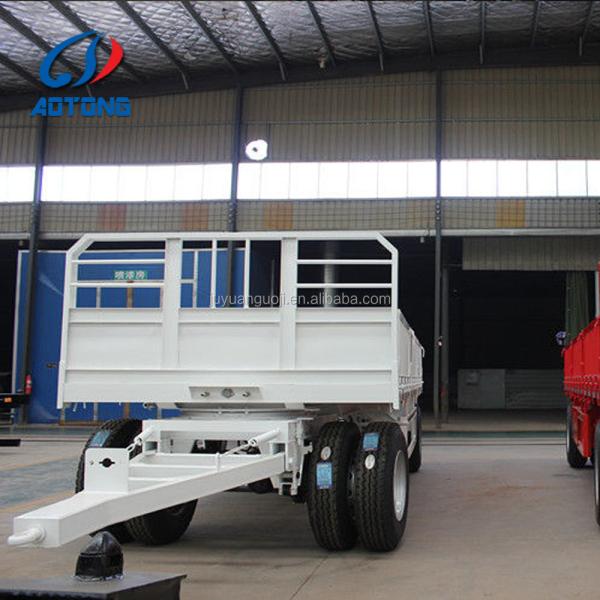

2/3 Axles 20ft/40ft Drawbar Full Trailer
1. Model: LAT9371TJZG (Dimensions &Axle Optional)
2. More than 16 years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 WMI SGS BV SONCAP agreement
5. Small order can be accepted
6. 1 year quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time
Product Specifications |
Product Name | 20ft/40ft farm wagon trailers for bulk cargo/container transport |
Model Number | LAT9350TJZG |
Rated Load | 35000 kg |
Tare Weight | 4250 kg |
Drawbar: | Length1.4m |
Turntable |
Diameter 1100mm |
Main Beam |
Opting for high tensile steel Q345B, welded by automatic
Submerged-Arc processes 500mm Height, Top Flange 16mm, width 140mm;
Middle Flange 6mm; Bottom Flange 16mm, width 140mm |
Side wall | 600mm height,design& height can be customized made |
Tyre Specifications | 11R22.5/12R22.5-18,10 holes, tubeless tyre(Tri angle brand) |
No. Of the Tyres | 12 |
Axle Brand | 13tons,10holes,FUWA (BPW optional) |
No. Of the Axles | 2/3 |
Twist lock | 4/8/12 units THT brand (optional) |
Landing Leg | Two-speed, manually operating, landing leg optional |
Suspension | Leafspring suspension (or air suspension) |
Outside Dimensions (LxWxH) | 12450X2500X1580 (mm) |
Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
Brake System | One unit of WABCO RE 6 relay valve; Four units of T30/30 spring
brake chamber; Two units of T30 brake chamber, Two unit of reliable
local brand 45L air tank; Two units of reliable local brand
standard coppery air-connector. |
Electrical | International standard 24v circuit 7-pin ISO socket; Tail lamp with
turn signal, brake light & reflector, side lamp etc. One set 6-core
standard Cable. |
Color and painting | Coat of anticorrosive primer; Coats of finish urethane paint; Color
as customer choice.Any color will be available |
Accessory | One tooling box with a set of standard trailer tool |
Floor | Steel Sheet 3mm thickness or diamond plate |
Functions
1. This series small truck trailerss are mainly used in the
agricultural products, and bulk cargo or electrical appliance
transportation.
2. The rated capacity varies widely from 30Tons to 100Tons, and the
dimension different from 7000mm to 18000mm, we can manufacture it
according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need
with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension, etc.
5. The side wall height and side or back door numbers and opening
ways have several options for your better usage.
According to customer's loacation and the vehicles size,we provide
professional packing can save great sea freight for customers.
Company Information
Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, with a factory, Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.
Having been in the field of trailer manufacture since 2001, we are
one of the companies which first gained Compulsory Product
Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 certificate.
With advanced and proven technique in design, exploitation and
production, our products with the brand "Aotong" are enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia,specially get good feed back from Kenya,Tunisia,Saudi Arabia, the
Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania,
mozambique, Congo, Nigeria, Russia,Singapore,South Korea etc. .
Now we provide more than 60 types of trailers. Our production can
be done according to your requirements.
Welcome to visit our factory,we will pick you up from airport!!
Country we have exported to :
African countries:
Congo, Tanzania, Ethiopia, Djibouti, Kenya, Angola, Chad, Egypt,
Sudan, Libya, Tunisia, Algeria, Sudan, Egypt, Libya, Eritrea,
Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western
Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau,
Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo,
Benin, Niger, Nigeria and the Canary Islands. Cameroon, Equatorial
Guinea, Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, and so on.
European and Asian countries:
Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam,
Laos, Cambodia, the Philippines, Malaysia,Singapore,Indonesia,South
Korea and so on.
South American countries:
Brazil, Bolivia, Uruguay, Peru, Chile, Argentina, Dominica, Mexico,
Cuba, and so on.
Customized Sevice
Our trailers can be designed according to customer's requirements
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY |
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS |
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS |
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS |
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS |
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY |
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS |
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS |
AIR RESERVOIR | 6 MONTHS |
ITEM NAME | WARRANTY |
OTHERS | LEAF SPRING | 3 MONTHS |
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS |
EMERGENCY RELAY VALVE | 3 MONTHS |
BRAKE SHOE | 3 MONTHS |
RELAY VALVE | 3 MONTHS |
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays
after we received your prepayment. If you have place an order of
large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the trailer design?
Yes, we offer customized design and logo for reasonable type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
OUR CLIENTS AND SUCCESFUL CASES
----------------Welcome to visit our factory and office,we will
pick you up from airport and station
Transction Process
1. Send us inquiries on your desired product / mdel through our
contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.
