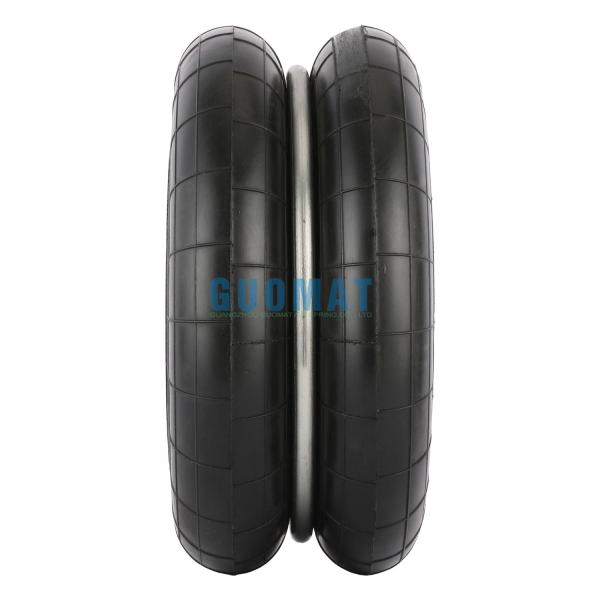

F-200-2 Double Convoluted Punching Press Air Spring Cross Yokohama S-200-2R
Product Description
Product Name:Double Convoluted Air Spring
Size:Standard
Part Number:F-200-2R
OEM Number: Yokohama S-200-2R
OEM Number: Yokohama S 200 2R
OEM Number: Yokohama S2002R
Warranty:12 Months
Color:Black
Net Weight:2.5KG
Gross Weight:3.0KG
Package Size:120mmX260mmX260mm
Compressed height:65mm
Maxumum Height:130mm
Full Stroke:65mm
Working Medium:Water,Air
Product Parameters
| GUOMAT NO. | Reference NO. | Height H(mm) | Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) | Effective Area (cm2) | Volume (L) |
| Design Height (mm) | Max Height (mm) | Min Height (mm) |
| F-200-4 | S-200-4 | 206 | 311 | 111 | ±70 | 260 | 315 | 7.2 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 | 315 | 5.2 |
| F-200-2 | S-200-2 | 98 | 148 | 53 | ±35 | 260 | 315 | 3.2 |
| GUOMAT NO. | Reference NO. | Load (KN) | Dynamic Spring Constant (n/mm) | Natural Vibration Frequency (Hz) | Maximum Internal Pressure (MPa) | Internal Pressure Failure(MPa) |
| F-200-4 | S-200-4 | 15.4 | 177 | 1.7 | 0.88 | 2.9-3.9 |
| F-200-3 | S-200-3 | 15.4 | 235 | 2.0 | 0.88 | 2.9-3.9 |
| F-200-2 | S-200-2 | 15.4 | 373 | 2.5 | 0.88 | 2.9-3.9 |

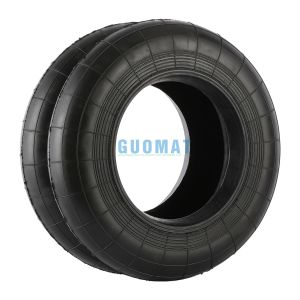

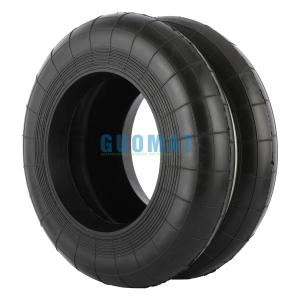

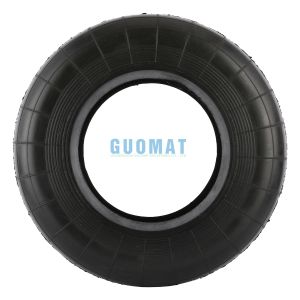

Detailed Photos
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and
is located in Guangzhou, the capital city of Guangdong Province.
The company's production plant covers an area of 20,000 square
meters and is located in Taihe Town, Baiyun District, Guangzhou
City. With the continuous development of the company, it is
gradually equipped with modern workshops and advanced rubber air
spring equipment. It is one of the important air spring production
bases in China. At the same time, Gomart used domestic advanced air
spring processing equipment and introduced foreign air spring
production technology, combined with the company's unique
production process, and strictly implemented production in
accordance with international standards to produce advanced
products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are:
rubber air springs, air suspension springs, rubber air springs for
automobiles, airbags for passenger cars and trucks, industrial air
springs, etc. The products cover buses, luxury cars, trucks,
Commercial vehicles, rail vehicles, industrial machinery,
industrial equipment and other industries. The company has hundreds
of models and styles of products. At the same time, it can also
carry out directional transformation and design of products
according to the special needs of users, providing users with
one-stop service.
Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international
quality standards. Please rest assure that we have very strict
Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
