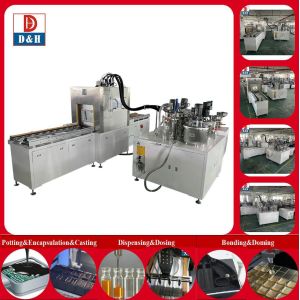

    Transformer Vacuum Potting Dispensing Machine with Out-Gluing Rate 5-66g/5s and Pump

    Ask Lasest Price
    Brand Name : Daheng
    Model Number : VGB-450Q
    Price : $38,000.00/pieces 1-1 pieces
    Certification : CE,ISO,ROHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 unit per month
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    Transformer Vacuum Potting Dispensing Machine with Out-Gluing Rate 5-66g/5s and Pump

    Why Choose Us

    Vacuum potting dispensing machine AB casting under vacuum chamber vacuum machine for ab resins

    Vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT
    We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

    Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

    We offer automatic ,semi automatic fluid dispensing potting machine and the related production line and vacuuming systems .

    Introduction :

    1. Working Area: controlled by PLC module and MCGS touch screen. 2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Gear pump special for transparent glue. 4. Mix glue A & B more evenly; no more or no less for agent B.

    Working principle :

    Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

    Tank system technology:

    1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve. 6 Tank with artificial feeding mouth that can be added glue appropriately by hand . 7 Tank with silica-dryer which can prevent material especially PU from crystallization .

    D&H Pump technology

    1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s,Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.

    Valve technology

    1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s,Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
    Tech Data
    Glue ratio
    1 :1 ---10:1
    Ratio acurracy
    ±2%
    Glue-out speed
    0.5g/s --12g/s(Per single pump)
    Glue-out accuracy
    ±2%
    Program memory
    99 pcs
    Glue viscosity
    50cps~8000cps(Reference number)
    Opearation Mode
    Manual mode /Automatic mode
    Ratio Control
    PLC/ Double plunger pump (Can change different type of metering pumps)
    Flow Control
    Digital input
    Parameter display
    Pointer / digital display
    Automatic control system
    Touch screen / button switch/ third party signal
    Mixing Method
    Static mixing / Automatic cleaning
    Storage Tank
    Stainless steel A and B(10L,25L ,40L optional)
    Stainless steel cleaning barrel C(5L)
    Vacuum degas(-0.1MPa)
    Liquid level sensor(Low liquid level/high liquid level)
    A/B Tank stirring
    AB glue constant temperature heating(available)
    Glue filter
    Power
    220V/50Hz/5000W
    Outer dimension
    Glue Potting Machine:995mm×600mm×1500mm
    Frame Materials
    Cold rolled steel/industrial aluminum/stainless steel/sheet metal
    Glue method
    A glue diaphragm pump glue function
    PLC Operation Controlling System
    Vacuum Epoxy Resin Casting Machine 2 Component Resin Vacuum Epoxy Resin Casting Machine
    1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
    2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
    3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
    4 Machine with gel resistance calculator , which prevent the mixture curing inside .
    5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
    6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
    7 Reserved PLC communication interface, which easy connecting with outside device .
    8 Equipped with a safety lock to prevent staff from wrong operation .
    Category
    Parameter
    Category
    Specification
    Mixing ratio
    1:1—10:1
    Speed
    0-250mm/s(displacement speed)
    Working area
    Inner area:500x350x100mm,
    Dimension:900x790x760mm
    Program memory
    99 pcs
    Precision
    ±0.1mm (accuracy of displacement)
    ±2%(mixing accuracy)
    Input air pressure
    0.4MPa—0.8MPa
    Viscosity range
    0cps~30000cps
    Working path
    Dot, line , arc , circle
    Operation mode
    JOG/AUTO
    Control system
    PLC
    Auto control system
    Industrial touch screen program with programming modification, storage and so on
    Flow control
    Digital input
    Programming method
    Teaching programming
    Out-glue control system
    AB glue suck-back valve /vacuum suck back skill.
    Mixing mode
    Dynamic
    Power
    380V/50Hz/1200W
    Storage system
    Stainless steel tanks
    A Tank: 40L & B Tank: 25L
    (10L,25L ,40L optional)
    Vacuum degree
    -0.1MPa
    Vacuum time
    90S(as per different requirement)
    Application
    Vacuum Epoxy Resin Casting Machine 2 Component Resin Vacuum Epoxy Resin Casting Machine
    1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
    Applicable material
    1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
    Service Term
    1, Staff training Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .
    2,Maintenance Service 2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
    2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
    2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
    FAQ
    Q:Do you offer oversea service?
    A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
    Q:How dose your factory do regarding quality control?
    A:We assure 1 year warranty for the main part,also we offer spare part for back up.
    Please check with sales engineer in detail.
    Q:What are your payment terms?
    A:Normally, 30% advance by T/T and balance paid off before delivery.
    Q:Are you a factory or trading company ?
    A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
