55'' Indoor High Brightness Ceiling Hanging Advertising Single Side
Digital Signage Window Lcd Display Screen
Outdoor Landscape Displays Wall mounted with fan c...
Features
1. Structure
1.1 Shell design: The shell is made of 1.0-1.5mm aluminum plate, an
industry first. It is sprayed with Aksu outdoor special powder and
has outdoor anti-corrosion for more than 7 years.
1.2 Waterproof design: The shell structure is fully sealed, and the
control box is designed with a waterproof groove and waterproof
labyrinth, meeting the IP66 protection level.
1.3 Dust-proof design: The shell structure is fully sealed and dust
cannot enter the inside of the machine.
1.4 Highly transparent glass: The protective glass in front of the
screen of the whole machine is made of 5mm AG etched tempered
glass. Reduce reflections.
1.5 Maintenance: The whole machine adopts modular design for easy
installation and maintenance.
1.6 Anti-theft design: The base/hanger adopts an internal locking
design to prevent the screws from being removed from the outside to
move the machine and equipment, truly achieving safety and
anti-theft.
1.7 Installation rack: The whole machine pendant is designed with
mounting and fixing holes for fixing on the wall or other objects.
It can be customized according to customer requirements, and
accessories are prepared. It can be installed directly after
receiving the machine by drilling holes.
2. Display
2.1 It adopts an outdoor-specific high-brightness LCD screen with a
brightness of 1000-3000nit, visible under strong light, and a
design life of 50,000 hours.
2.2 High-definition image quality, screen resolution: 1920X1080.
2.3 High dynamic contrast, clearer picture, viewing angle 178°.
2.4 Intelligent light-sensing system can automatically adjust the
screen brightness according to the environment. Users can watch
programs clearly/comfortably at different times and protect their
eyes.
2.5 Intelligent color calibration, automatically calibrate contrast
colors or manually fine-tune to present a perfect picture.
3. Intelligent temperature control system
3.1 Adopt OD10 direct backlight, professional and special uniform
temperature heat dissipation design.
3.2 The independently developed intelligent temperature control
system control box can intelligently adjust and protect each
component according to the internal temperature of the advertising
machine.
Screen Size | 32" | 43" | 46" | 49" | 55" | 65" |
Panel Technology | WRGB | WRGB | WRGB | IPS, RGB | RGB | WRGB |
Aspect Ratio | 16:9 | |
Native Resolution | 1,920 x 1,080 (FHD, RGB) | 3,840 x 2,160 RGB) |
Brightness | 3000 cd/m2 (Natural) and 4000cd/m2 acceptable |
Contrast Ratio | 1200:1 |
Viewing Angle (H x V) | 178 x 178 |
Response Time | Typ. 8.0ms (G to G) |
Life Time (Typ.) | 50,000 Hrs |
Operation Hours | 24 Hrs |
Orientation | Portrait & Landscape |
POWER | HDM1(1), DVI(1), USB(1),CVBS(1),VGA(1),micro SD card(1),wifi(1) |
input | HDM1(1), USB 2.0(2),Amplifier out(1) |
output | HDM1(1), USB 2.0(2),Amplifier out(1) |
External Contro | RS232C In/Out, RJ45(LAN) In/Out,PD In/Out(for Automatic
photosensitive adjustment ) |
Bezel Width | 4.7mm(T//B/L/R) | 2.85mm(T/L), 1.85mm(B/R) | 4.7mm(T//B/L/R) |
Monitor Dimension (W x H x D) | 711.83× 408.86mm | 954.33 x 545.18 x 99.7mm | 1023.4 x 578.0x 94.9mm | 1078.7 x 609.0x 94.9mm | 1214.7x 685.5 x 94.9mm | 1444.41 x820.70 x
99.70mm |
Weight (Net.) | 21kg | 21kg | 24kg | 26kg | 33kg | 45kg |
Packing Dimensions (W x H x D) | / | / | 1115 x 340 x 665mm | 1170 x 340x 700mm | 1310 x 340 x 780 mm | 1520 x 195 x 915mm |
Packed Weight | 48Kg (2pcs) | 52Kg (2pcs) | 56kg (2pcs) | 72kg (2pcs) | 57Kg (1pcs) |
ENVIRONMENT
CONDITIONS | Operation Temperature:-30°C to 70 °C
Operation Humidity:5 % to 100 % |
ACCESSORY | Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to
RS232C Gender, HDMI Cable , POWER CABLE, Battery |
Applications
1,Smart bus station
2,Outdoor TV
3,Samrt self serive kiosk

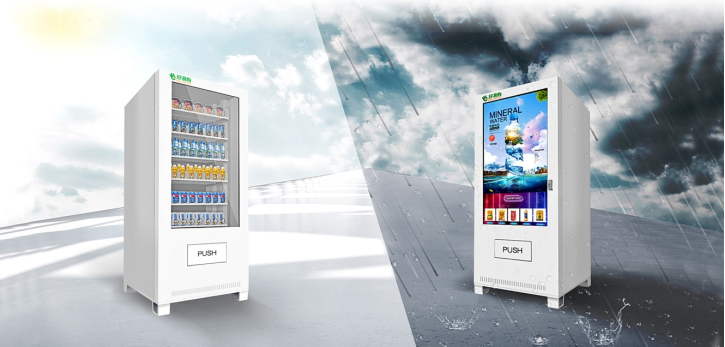

4,Outdoor vending machine
Ordinary highlight LCD VS Optical Bonding LCD
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation
village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.l
4. Business Organizations: Supermarket, Shopping malls, chain
store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd
display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best
structural Engineer,we hope to provide you with best screen and
shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the
same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
