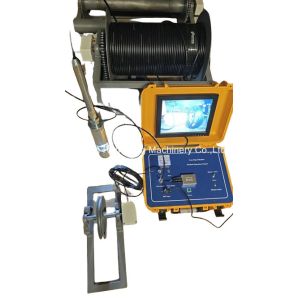

Product Description:
The Borewell Camera is designed with a USB interface that enables
users to transfer data from the camera to a computer easily. The
data interface can be written into well location, well number, and
can be self-calibration depth, making it easy for users to track
the location and depth of the images captured by the camera.
The Borehole Inspection Camera is designed to rotate 360°, allowing
users to capture images of the entire subsurface geology. The
camera window is made of explosion-proof optical acrylic glass or
explosion-proof glass window, ensuring the safety of the users and
the equipment.
The Geophysical Survey Equipment is widely used for Well Inspection
Camera, borehole camera, and other applications in the mining and
drilling industries. The Borehole Inspection Camera is designed to
withstand harsh conditions, making it suitable for use in
underwater environments and other challenging conditions.
Features:
- Product Name: 360° Side Lens Angle Borewell Camera Borehole
Inspection Camera With 1200 TVL Definition Low-Light Camera Pixels
- Data Interface: Can be written into well location, well number, can
be self-calibration depth
- Detection Depth: 300m/400m/500m/800m/1000m
- Type: Survey Equipment
- Monitor Size: 12” High Brightness LED Monitor, 210*310mm, Outdoor
Visual, Screen resolution 1027*768
Technical Parameters:
| Technical Parameter | Description |
|---|
| Detection Depth | 300m/400m/500m/800m/1000m |
| Camera Size | Φ65mm(Φ50mm wide angle camera Optional) |
| Winch Type | Electric Winch |
| Video System | 8G SD Card Video System |
| Probe Interface | Connect the probe, transmit video and power |
| Rotate | 360° |
| Cable Material | Custom Logging Cable |
| Display Size | 12 inch LED monitor, Aspect ratio: 4:3, Contrast: 450:1,
Brightness: 800cd/m2, Resolution: 1027 × 768, Power DC 12V,220V
,380V, Color system: PAL/NTSC/SECAM |
| Probe Pressure | 1500m, Pressure 15Mpa |
| Product Category | Geophysical Survey Equipment |
This Geophysical Survey Equipment product is a borehole camera that
can be used for water well inspection camera purposes.
Applications:
The Borehole Inspection Camera comes in several models, such as
RC-H300/H400/H500/H800/1200m/1500m/2000m. It has a 12-inch LED
monitor with an aspect ratio of 4:3, contrast of 450:1, brightness
of 800cd/m2, and a resolution of 1027 × 768. The power supply is DC
12V, 220V, and 380V. It has a color system of PAL/NTSC/SECAM. The
temperature tolerance is up to 65º. The data interface can be
written into well location, well number, and can be self-calibrated
for depth. It also comes with an electric winch.
The Borewell Camera is suitable for various occasions and
scenarios. One of the primary applications is water well inspection
camera. The equipment is ideal for inspecting water wells for leaks
and other damages. It can help to detect the location of the
problem and provide a detailed report of the issue. It can also be
used for Well Inspection Camera and other inspection activities.
The equipment is portable and easy to use, making it convenient for
fieldwork. It is also suitable for mining and oil exploration to
detect the presence of minerals and oil deposits.
Support and Services:
Our Geophysical Survey Equipment product comes with extensive
technical support and services to ensure maximum performance and
customer satisfaction. Our experts are available to answer any
questions and provide assistance regarding the installation,
operation, and maintenance of the equipment.
FAQ:
1. What is the brand name of the geophysical survey equipment?
A: The brand name of the geophysical survey equipment is RanCheng.
2. What certifications does the geophysical survey equipment have?
A: The geophysical survey equipment has CE and ISO 9001:2000
certifications.
3. What is the place of origin of the geophysical survey equipment?
A: The geophysical survey equipment is made in China.
4. What are the payment terms for purchasing the geophysical survey
equipment?
A: The payment terms for purchasing the geophysical survey
equipment are T/T and Western Union.
5. What is the supply ability for the geophysical survey equipment?
A: The supply ability for the geophysical survey equipment is 100
sets per month.
6. What is the delivery time for the geophysical survey equipment?
A: The delivery time for the geophysical survey equipment is 10-15
working days.
7. What is the minimum order quantity for the geophysical survey
equipment?
A: The minimum order quantity for the geophysical survey equipment
is 1 set.
8. Is the price for the geophysical survey equipment negotiable?
A: Yes, the price for the geophysical survey equipment is
negotiable.
9. What are the packaging details for the geophysical survey
equipment?
A: The packaging details for the geophysical survey equipment are
standard shipping.
10. What are the available models for the geophysical survey
equipment?
A: The available models for the geophysical survey equipment are
RC-H300, RC-H400, RC-H500, RC-H800, RC-1200m, RC-1500m, and
RC-2000m.
