Corn rice circulation tower dryer wheat grain crop tower dryer for
agriculture
Product description:
The tower grain dryer mainly consists of drying section,
slow-heating section, cooling section, lifting, monitoring and
other parts; it adopts downstream drying and low-temperature
cooling technology, with multiple drying sections, each drying
section has a grain slow-heating area, the drying process is long,
the grain is heated evenly, and the drying is sufficient. The tower
grain dryer uses clean hot air as the drying medium, which is
suitable for drying high-moisture crops such as corn, rice, wheat,
soybeans, etc. in various regions.
Working principle:
The hot air drying box adopts a rotary heating device, which can
generate a large amount of hot air in a short time. It can kill
insect eggs through high temperature treatment and completely solve
the discoloration phenomenon during the drying process. The drying
box body adopts metal aluminum inner wall plate, silicone cotton
insulation, corrugated color steel plate or aluminum alloy outer
wall plate. Digital control and detection are used in the box body
to effectively control air circulation, humidification and heating.
Features:
1. Wide range of applications, tower dryer can be used to dry rice,
wheat, sorghum, soybean and other grain crops;
2. Good grain quality after drying, the grain dryer has a large
drying section volume, a long drying process, uniform heating of
grain, and sufficient heat exchange;
3. Grain moisture is uniform after drying, and the grain outlet
temperature is low;
4. The tower dryer adopts a screw-free design, and the grain outlet
breakage rate is low after drying;
5. The drying temperature is set reasonably to reduce the grain
bursting rate;
6. Tower dryer machine has high degree of mechanization, easy
operation, low equipment failure rate, and low maintenance costs
Specification:
| Model | 5H-10(Conveyor Belt) |
| Working Principle | Mixed Flow Type |
| Structural Style | Batch Cycle |
| Overall Dimensions | L2380*W2080*H8638mm |
| Weight | 3100KG |
| Processing Capacity(Grain) | 10000KG/Batch |
| Total Power(excluding heat sources) | 7.7KW |
| Fragmentation Rate Increment | ≤0.5% |
| Value-added of Burst Waist Rate | ≤2% |
Non-uniformity of Moisture Content
in Dried Cereals | ≤1.0% |
| Precipitation Range | 0.8-1.3%/h |
| Dry Capacity | ≥7.5t.%/h |
| Loading Time | 50min |
| Discharge Time | 45min |
FAQ:
Q1: What's your working volts for your machines?
A1: Our tower dryer machine mainly work on with 380V 3 phases. if
have other demands for the workingvolts, please let us know in
advance. We will check and customize for you
Q2: What's your lead and delivery time?
A2: Usually machines should be prepared well within 15-20 days,
including Sundays when deposit isconfirmed. Delivery time should
depend on customers’ demands for the delivery way.
Q3: How is your warranty?
A3: Warranty period is 24 months from the startup on site.

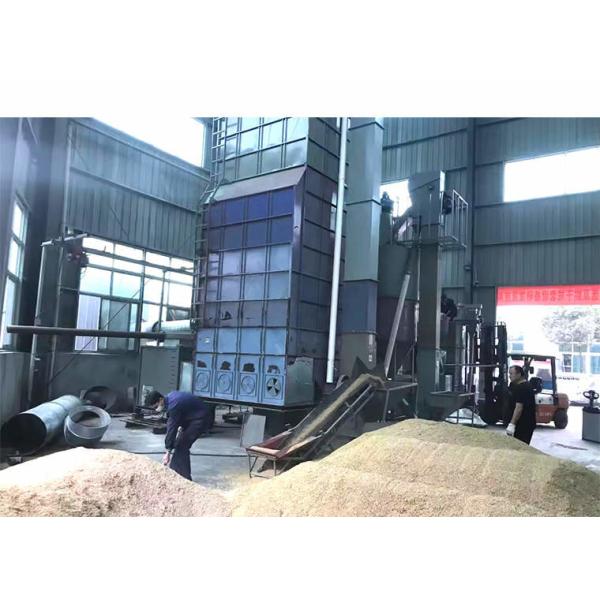

Tower dryer customer site:
