    Protection Grade IP67 Water Proof Slip Ring With Miniature Capsule

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN22-04P-06S-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Protection Grade IP67 Water Proof Slip Ring With Miniature Capsule

    Protection Grade IP67 Water proof Slip Ring with Miniature Capsule


    ACN22-04P-06S-IP67 is CENO new function slip ring capsule with protection grade IP67 and can be up to IP68 for special request. There are kinds of function slip ring at CENO, such as the Anti-explosion slip ring, high / low temperature slip ring, high speed slip ring and waterproof slip ring. The water proof slip ring used in environments such as humidity, corrosion and underwater, which can solve the working problems in the underwater environment. For more information please contact us.


    Features

    • Waterproof & dust proof, IP68 protection level optional
    • Anti-corrosion stainless steel sell
    • Maximum 1-96 power & signal channels

    Applications

    • Marine equipment
    • Filling machine
    • Boat or Ship
    • Drilling platform
    • Undersea robot

    Optional

    • Circuits, Voltage, Current
    • Shape & dimension
    • Contact / Housing Materials
    • Protection grade
    • Working speed


    Specification

    ACN22-04P-06S-IP67

    Specification
    Current & Circuits4circuits * 6A; 6 circuits * 2A
    Rating Voltage0-240VAC/VDC
    Dielectric strength≥500VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤10mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Working temperature-20°C~+80°C
    Working humidity60 %RH
    IP protection gradeIP67
    Operating speed0~250rpm
    Outer diameterØ22mm
    Lead wire sizeAWG 20# 26# Wire Teflon® UL
    Lead wire lengthRotor : 250±5 mm; Stator: 250±5 mm

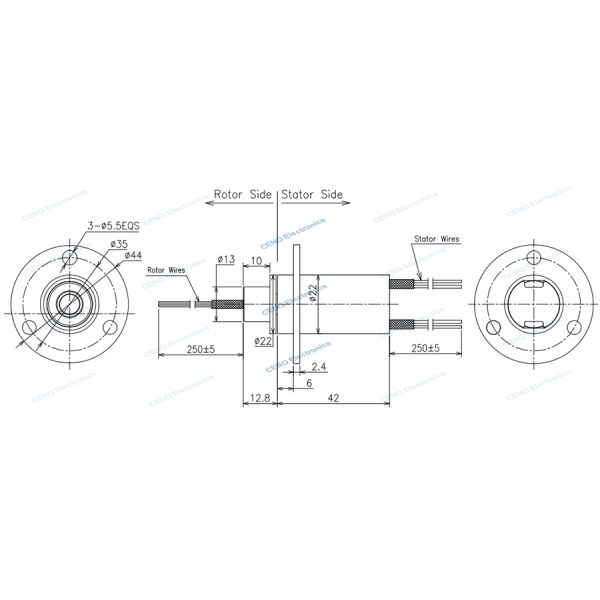

    Outline Drawing
