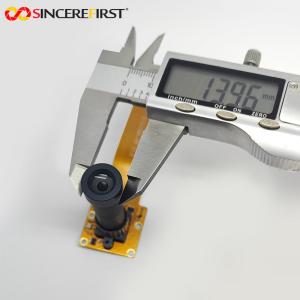

8MP Sony IMX219 CMOS Sensor M12 Lens Raspberry Pi Camera Module
Product Description:
IMX219 8MP Raspberry Pi compatible camera module features Sony
IMX219 color sensor. The sensor has a 1/4" optical format, combined
with a pixel size of 1.12 µm x 1.12 µm, to deliver 8MP 3296 x 2480
images. This is a rolling shutter sensor that can simultaneously
Captures an entire column (or row). The sensor compiles the image
by scanning horizontally (or downwardly). It provides excellent
performance in image quality, color fidelity, and low light. Still
shooting.
For beginners, this is a very easy-to-use camera module; for
advanced players, this camera module has more knowledge worth
exploring and DIY.
Features:
1. 8MP HD Camera: Designed for Raspberry Pi, based on Sony 8MP
IMX219 Sensor.
2. Higher quality: Compared with the official Raspberry Pi Camera
v1, not only the resolution is improved, but its image quality,
color fidelity, and low light performance are all upgraded by leap.
3. 1080P High resolution: Supports 3296 × 2480 pixel still images,
and still captures.
4. Easy to setup: Simply use the ribbon cable to attach the CSI
port on the Raspberry Pi, then make a simple configuration and you
are ready to use the camera.
5. Back-illuminated CMOS image sensor Exmor RT
6. 2-wire serial communication circuit on chip
7. CSI2 serial data output (selection of 4lane/2lane)
8. Timing generator, H and V driver circuits on chip
9. CDS/PGA on chip
10. 10-bit A/D converter on chip
11. Automatic optical black (OB) clamp circuit on chip
12. PLL on chip (rectangular wave)
13. High sensitivity, low dark current,no smear
14. Excellent anti-blooming characteristics
15. Variable-speed shutter function(1Hunits)
16. R, G, B primary color pigment mosaic fillers on chip
17. Max.30 frame/s in all-pixel scan mode
18. Pixel rate:280 MHz(All-pixels mode)
19. 720p/120 frame/s,1080p(crop)/30 frame/s
20. Data rate: Max.755 Mbps/lane
Technical Parameters:
| Image Sensor | IMX219 |
| Resolution | 8 Megapixels |
| Chip Type | 3296H * 2480V |
| Distortion | ＜-1% |
| View Angle | D75.6°*H63.6°*V50° |
| Focusing Range | 10cm-∞ |
| F. NO | 2.4±5% |
| Lens Mount | M12 Mount |
| Focus Type | Manual Focus |
| Pixel Size | 1.12 µm x 1.12 µm |
Applications:
Industrial Camera
Agricultural Cameras
Robots
Home Security
3d Printer
Monitoring
Drone
