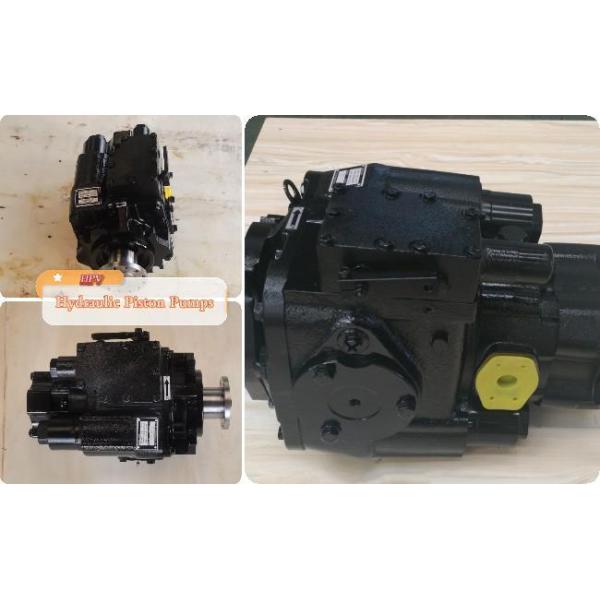

Black Max Pressure 42Mpa Hydraulic Transmission Hydraulic Piston
Pump
Product Description:
Not only does Highland HPV110 hydraulic pump feature a
top-of-the-line structure, but it also runs on hydraulic power,
providing a strong and consistent flow for your hydraulic system.
And with its standard export package of a durable plywood case, you
can rest assured that our Highland hydraulic pump will arrive in
top condition.
As one of our premier hydraulic system components, Highland HPV110
hydraulic pump is designed to meet the highest standards of quality
and reliability. Whether you need it for heavy duty industrial
applications or for everyday use, Highland hydraulic pump is built
to last.
So why wait? Invest in the best with our HPV110 hydraulic pump.
Order yours today and experience the hydraulic power and
performance of a top-of-the-line hydraulic pump.
Features:
- Product Name: Hydraulic Piston Pumps
- Material: Cast Iron
- Structure: Variable Displacement Axial Piston Pump
- Max Pressure: 42Mpa
- Pressure Range: High Pressure
- Principle: Hydraulic Transmission
Highland hydraulic piston pump is perfect for those looking for a
high pressure solution. Its cast iron material and variable
displacement axial piston pump structure make it durable and
efficient. With a max pressure of 42Mpa, this piston pump for sale
is ideal for hydraulic transmission applications.
Technical Parameters:
| Product Name | Hydraulic Piston Pumps |
| Structure | Variable Displacement Axial Piston Pump |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Max Pressure | 42Mpa |
| Rated Pressure | 35Mpa |
| Pressure Range | High Pressure |
| Material | Cast Iron |
| Color | Black |
| Package | Plywood Case |
| Warranty | 1 Year |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
HIGHLAND HPV110 hydraulic piston pump is suitable for a wide range
of product application occasions and scenarios. It is commonly used
in construction machinery, such as excavators, bulldozers, loaders,
and cranes, to power the hydraulic system. It is also used in
agricultural machinery, such as tractors and harvesters, to drive
the hydraulic system. Additionally, it can be used in metallurgical
machinery, mining machinery, and other heavy-duty machinery.
If you are looking for a hydraulic piston pump for sale, HIGHLAND
HPV110 is an excellent choice. It comes with a patent certificate
and a 1-year warranty, ensuring its quality and durability. The
minimum order quantity is 5 sets, and the price ranges from
USD900-1400 per set, depending on the order volume. The packaging
details include a sturdy plywood case to ensure safe
transportation.
HIGHLAND HPV110 hydraulic piston pump has a supply ability of 200
sets per month, with a delivery time of 10 working days. The
payment terms include T/T and Western Union, making it easy to
complete the transaction.
In summary, HIGHLAND HPV110 hydraulic piston pump is a versatile
and reliable power source that can be used in various industries.
Its patent certificate, 1-year warranty, and sturdy packaging make
it a trusted product. If you need a hydraulic piston pump for sale,
consider HIGHLAND HPV110.
Support and Services:
Highland Hydraulic Piston Pumps are built to provide reliable and
efficient performance in a wide range of applications. Our
technical support team is available to assist with any questions or
issues you may encounter with your pump. We offer a range of
services, including:
- Installation assistance and guidance
- Maintenance tips and recommendations
- Repair and replacement parts
- Diagnostics and troubleshooting
- Training and education on pump operation and maintenance
Our goal is to ensure that your Hydraulic Piston Pump operates at
peak performance and provides you with the results you need.
Contact us for more information on our technical support and
services.
FAQ:
Q: What is the brand name of the Hydraulic Piston Pump?
A: The brand name of the Hydraulic Piston Pump is HIGHLAND.
Q: What is the model number of the Hydraulic Piston Pump?
A: The model number of the Hydraulic Piston Pump is HPV110.
Q: Where is the Hydraulic Piston Pump manufactured?
A: The Hydraulic Piston Pump is manufactured in CHINA DEZHOU.
Q: Does the Hydraulic Piston Pump have any certification?
A: Yes, the Hydraulic Piston Pump has a PATENT CERTIFICATE.
Q: What is the minimum order quantity for the Hydraulic Piston
Pump?
A: The minimum order quantity for the Hydraulic Piston Pump is 5
sets.
Q: What is the price range of the Hydraulic Piston Pump?
A: The price range of the Hydraulic Piston Pump is USD900-1400 per
set.
Q: What are the packaging details for the Hydraulic Piston Pump?
A: The Hydraulic Piston Pump is packaged in a Plywood Case.
Q: How long does it take to deliver the Hydraulic Piston Pump?
A: The delivery time for the Hydraulic Piston Pump is 10 working
days.
Q: What are the payment terms for the Hydraulic Piston Pump?
A: The payment terms for the Hydraulic Piston Pump are T/T and
Western Union.
Q: What is the supply ability of the Hydraulic Piston Pump?
A: The supply ability of the Hydraulic Piston Pump is 200 sets per
month.
Tags: hydraulic system components, HPV110 hydraulic pump, piston
pump for sale
