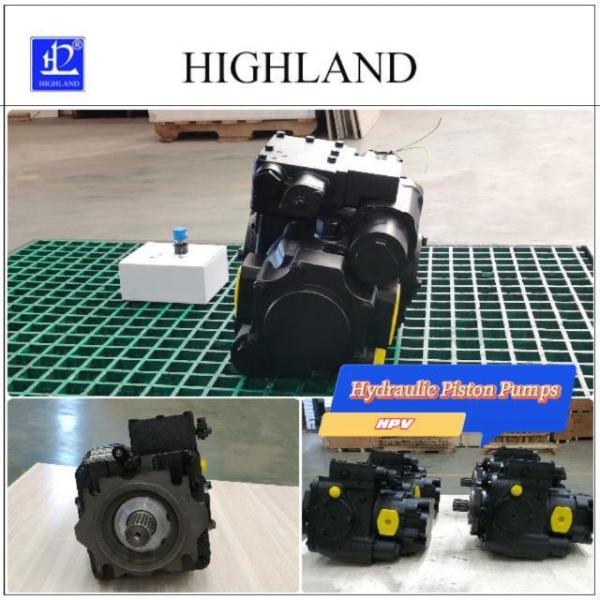

35Mpa Rated Pressure Black Hydraulic Piston Pump for Closed Loop
Axial Piston Pump
Product Description:
The black color of axial piston pump not only adds a sleek and
professional look to your machinery, but it also helps to protect
piston pump from external wear and tear. Its high-pressure
capabilities make it ideal for heavy-duty applications such as
construction equipment, mining machinery, and agricultural
machinery.
Highland hydraulic piston pump is designed with precision to ensure
maximum efficiency with minimal noise and vibration. Its compact
size allows for easy installation and maintenance, making it a
popular choice among professionals in the hydraulic industry.
Whether you're pumping oil, water, or other fluids, Highland HPV110
hydraulic pump can handle it all with ease. Its reliable
performance and durability ensure that you can rely on this
high-pressure piston pump for years to come.
Investing in Highland hydraulic piston pump will not only improve
the efficiency and performance of your hydraulic system, but it
will also save you time and money in the long run. Its high quality
and reliable performance make it a popular choice among
professionals in the hydraulic industry.
Features:
- Product Name: Hydraulic Piston Pumps
- Pressure Range: High Pressure
- Rated Pressure: 35Mpa
- Type: Hydraulic Piston Pump
- Max Pressure: 42Mpa
- Material: Cast Iron
- Keywords: HPV110 hydraulic pump, hydraulic piston pump, High
quality hydraulic pump
Technical Parameters:
| Attribute | Value |
|---|
| Product Name | Hydraulic Piston Pumps |
| Material | Cast Iron |
| Package | Plywood Case |
| Standard Export Package | Plywood Case |
| Pressure Range | High Pressure |
| Max Pressure | 42Mpa |
| Type | Hydraulic Piston Pump |
| Structure | Variable Displacement Axial Piston Pump |
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Whether you need a piston pump for sale for use in construction,
mining, agriculture, or any other industry that requires powerful
and precise hydraulic machinery, HIGHLAND HPV110 hydraulic pump is
an excellent choice. It boasts a pressure range that can handle
even the toughest jobs, and its cast iron construction ensures
durability and longevity.
Ordering from us is easy and convenient. We require a minimum order
quantity of just 5 sets, and our prices range from USD900-1400 per
set. Our standard export package is a sturdy plywood case, and we
can typically deliver your order within 10 working days. We accept
payment via T/T or Western Union, and our supply ability is 200
sets per month.
Don't settle for a subpar hydraulic pump that can't meet your
needs. Choose the HIGHLAND HPV110 and enjoy reliable,
high-performing machinery that will help you get the job done
right.
Support and Services:
Highland Hydraulic Piston Pumps are designed to provide reliable
and efficient power for a variety of industrial applications. We
offer a range of hydraulic pumps with different flow rates and
pressure capabilities to meet the specific needs of our customers.
Our team of technical support specialists is available to assist
with any questions or issues related to Highland Hydraulic Piston
Pumps. We provide in-depth product training and troubleshooting
assistance to ensure that our customers can operate their pumps at
peak performance.
In addition to technical support, we also offer a variety of
services to keep Highland Hydraulic Piston Pumps running smoothly.
Our maintenance and repair services include routine inspections,
parts replacement, and on-site repairs. We are committed to
providing fast and efficient service to minimize downtime for our
customers.
At our company, we prioritize customer satisfaction and strive to
exceed expectations with every interaction. Contact us today to
learn more about our Hydraulic Piston Pumps and the services we
offer.
FAQ:
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110.
Q: Where is this hydraulic piston pump manufactured?
A: This hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Does this hydraulic piston pump come with any certifications?
A: Yes, this hydraulic piston pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this hydraulic piston
pump?
A: The minimum order quantity for this hydraulic piston pump is 5
sets.
Q: What is the price of this hydraulic piston pump?
A: The price of this hydraulic piston pump ranges from USD900-1400
per set.
Q: What are the packaging details for this hydraulic piston pump?
A: The packaging details for this hydraulic piston pump are Plywood
Case.
Q: What is the delivery time for this hydraulic piston pump?
A: The delivery time for this hydraulic piston pump is 10 working
days.
Q: What are the payment terms for this hydraulic piston pump?
A: The payment terms for this hydraulic piston pump are T/T and
Western Union.
Q: What is the supply ability for this hydraulic piston pump?
A: The supply ability for this hydraulic piston pump is 200 sets
per month.
Tags: Closed loop axial piston pump, HPV110 hydraulic pump, piston
pump for sale
