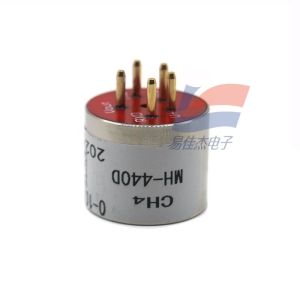

    MH-440D Methane Infrared Gas Sensor Analog Voltage Signal High Sensitivity

    Ask Lasest Price
    Brand Name : Winsen
    Model Number : MH-440D
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 3-5workingdays
    • Product Details
    • Company Profile

    MH-440D Methane Infrared Gas Sensor Analog Voltage Signal High Sensitivity

    MH-440D Methane Infrared Gas Sensor Analog Voltage Signal High Sensitivity


    Introduction
    MH-440D infrared gas sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CH4 in air and has good selectivity stable performance, long life, also is independent of Oxygen. The inside temperature sensor could be used for temperature compensation. This miniature infrared gas sensor is developed by the tight integration of mature infrared
    absorbing gas detection technology, micro machine workout and superior circuit design.


    Features
    1. High sensitivity, high resolution, fast response
    2. Output method: UART, analog voltage signal
    3. Temperature compensation, excellent linear output
    4. Excellent stability, Long lifespan
    5. Anti-poisons, anti-vapor interference
    6. Can replace catalytic type gas sensor directly


    Specification:

    DetectionGas Methane (CH4)
    Working Voltage3.6~5V DC (Need to be powered by safety barrier)
    Average Current<85mA
    Interface Level3.0V
    Detection range0~10%vol(selectable, refer fig2.)
    Output SignalUART(3.0V) 0.4~2.0V DC
    Warm-up time3 min
    Response timeT90<30s
    Working Temperature-20°C ~ 60°C
    Working Humidity0~95%RH(no condensation)
    SizeΦ20×22.6mm
    Weight35g
    Lifetime>5 years
    Defense GradeIP54
