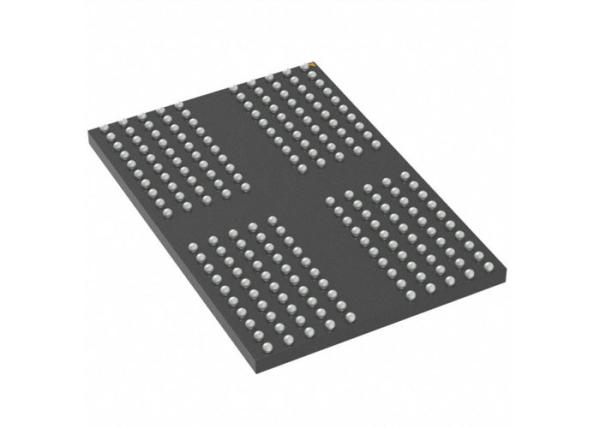

Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips

    Buy cheap Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips from wholesalers

    Buy cheap Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips from wholesalers
    • Buy cheap Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips from wholesalers

    Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : MT53E256M32D2DS-053 WT:B
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips

    Memory IC Chip MT53E256M32D2DS-053 WT:B 8Gbit SDRAM-Mobile LPDDR4 Memory Chips


    Product Description Of MT53E256M32D2DS-053 WT:B

    MT53E256M32D2DS-053 WT:B is 8Gbit SDRAM-Mobile LPDDR4 Memory Chips. The 8Gb Mobile Low-Power DDR4 SDRAM with low VDDQ (LPDDR4X) is a high-speed CMOS, dynamic random-access memory. The device is internally configured with x16 I/O, 8-banks. Each of the x16’s 536,870,912-bit banks is organized as 32,768 rows by 1024 columns by 16 bits.


    Specification Of MT53E256M32D2DS-053 WT:B

    Part Number:MT53E256M32D2DS-053 WT:B
    SDRAM Mobile - LPDDR4
    8 Gbit
    32 bit
    1.866 GHz
    VFBGA-200
    256 M x 32
    1.1 V
    - 25 C
    + 85 C


    Features Of MT53E256M32D2DS-053 WT:B

    • Frequency range: 2133–10 MHz (data rate range: 4266–20 Mb/s/pin)
    • 16n prefetch DDR architecture
    • 8 internal banks per channel for concurrent operation
    • Single-data-rate CMD/ADR entry
    • Bidirectional/differential data strobe per byte lane
    • Programmable READ and WRITE latencies (RL/WL)
    • Programmable and on-the-fly burst lengths (BL = 16, 32)
    • Directed per-bank refresh for concurrent bank operation and ease of command scheduling
    • Up to 8.5 GB/s per die
    • On-chip temperature sensor to control self refresh rate


    Other Electronic Components In Stock

    Part NumberPackage
    MTFC256GASAONS-AITBGA153
    MTFC32GASAONS-AITTFBGA-153
    MTFC64GASAONS-ITTFBGA-153
    MT60B2G8HB-48B:ATFBGA-153
    MT29F2G08ABBGAH4-IT:GVFBGA-63
    MT29F32G08ABAAAWP-ITZ:ATSOP-48
    MT29F1G01ABAFDWB-IT:F8-UDFN
    MT29F1G08ABBFAH4-ITE:FVFBGA-63
    MT29F32G08ABCABH1-10ITZ:AVBGA-100
    MT29F4T08EULEEM4-R:EBGA-132
    MT25QU128ABA8E54-0SITBGA-24
    MT29F128G08AJAAAWP-ITZ:ATFSOP-48
    MT29F2G01ABBGDWB-IT:G8-UPDFN
    MT29F2T08EMLGEJ4-ITF:GBGA
    MT29F1T08GBLCEJ4-M:CBGA
    MT29F4T08GLLCEG7-QB:CBGA
    MT29F8T08GQLCEG8-QB:CBGA
    MT29F512G08EBLCEJ4-QJ:CBGA
    MT29F8T08GULCEM4-M:CBGA
    MT29F512G08EBLEEJ4-M:EBGA
    MT29F1T08EELGEJ4-ITF:GBGA
    MT29F2T08GELCEJ4:CBGA
    MT29F512G08EBLGEJ4-ITF:GBGA
    MT29F512G08EBLEEJ4-R:EBGA
    MT29F4T08EULGEM4-ITF:GBGA
    MT29F16T08GWLCEM5:CBGA
    MT29F2T08EMLKEM4-M:KBGA
    MT29F4T08GMLCEJ4-QA:CBGA
    MT29F8T08EULCHD5-R:CBGA
    MT29F4T08EMLCHD4-QA:CBGA
