Product name:
Silicone Self-Fusing Tape
Brief introduction:
Silicone self-fusing tape has a wide range of applications and
superior performance. It has the characteristics of anti-fouling,
anti-hydrochloric acid, anti-ultraviolet, waterproof; oxygen
resistance, ozone resistance, cold resistance, heat resistance,
high pressure resistance, etc., and can be used in electrical power
industries such as cables, irregular conductors, mining, and
chemicals. Sealing insulation coating of transformer coil and other
electromechanical industry cables and cable accessories and
equipment parts.
Product name | Silicone Self-Fusing Tape |
Backing Material | Silicone |
Adhesive Side | Non Adhesive |
Color | Black/Blue/Red/Yellow/Green |
Adhesive Type | Self Fusing |
Feature | Corrosion-proof and has high resistance to heat, harsh solvents,
chemicals, UV;superior water and air tight sealing performance |
Size | 50mm*0.5mm*5m or Customized |
Application | Waterproof |
Packaging | shrinked for each roll and then packing by paper carton or as your
request |
Advantage | High quality/Best service/Popular design/fast delivery time/Cheaper
price |
Product Features:
*Excellent arc resistance
*Excellent tracking resistance
*Excellent ozone resistance
*Excellent insulation properties
*Good self-adhesiveness,easy to install by hand
*It can be used for a long time at extremely low temperature and
has excellent low temperature resistance
*very good temperature resistance ,can be used for a long time at
180℃.
*Excellent weather resistance
Product Applicatiom:
1.It can be applied to high-voltage cable heads to play a good role
in anti-arc and anti-leakage tracking.
2.It is suitable for wrapping on power cables of various insulation
materials .
3.It can be used for insulation protection in electrical cabinets.
4.It can be applied to H-class heat-resistant insulation.
Technical parameters
| Technical Parameters |
| Performance | Typical | Test Method |
| Hardness | 50±10Shore A | GB/T 531.1-2008 |
| Tensile strength | ≥6Mpa | GB/T 528-2009 |
| Elongation at break | ≥400% | GB/T 528-2009 |
| Dielectric strength | ≥20kv/mm | GB/T 1695-2005 |
| Volume resistivity | 1.30*1014Ωcm | GB/T 1692-2008 |
| Self-absorption | ＞4.6N/cm | ASTM D2148 |
| Water absorption | ＜0.9% | ASTM D4325 |
| Density | ＜1.3g/cm3 | GB/T 20631.2 |

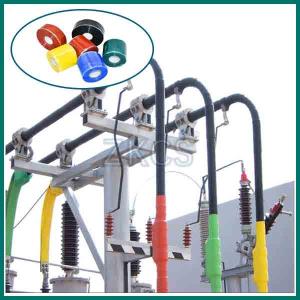

Product pictures for reference.
For your information:
Trade terms | FOB, EXW, CIF, |
Payment terms | T/T, L/C, Negotiable |
MOQ | 500pcs |
Supply capability | 300000 pieces per month |
Lead time | usually 10 working days |
Shipment | Express, air, sea |
Port | Shenzhen |
Sample availability | Yes |
Sample time | usually 3-5 days |
Packaging | Normal: Plastic bag & Carton & Pallet
Special: Customized packing |
