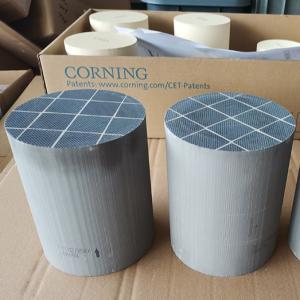

Low Regeneration Temperature Catalytic Diesel Specific Filter
(CDPF)
Product Description
1.Introduction.
Low regeneration temperature CDPF
The product is mainly characterized by passive regeneration at low
temperature, and the regeneration temperature is usually lower than
300 degrees. Therefore, it can be completely passively regenerated
without additional auxiliary means, and the system is simple.
Low regeneration temperature CDPF The product is mainly
characterized by passive regeneration at low temperature, and the
regeneration temperature is usually lower than 300 degrees.
Therefore, it can be completely passively regenerated without
additional auxiliary means, and the system is si
2. GRACE DPF general specifications
| | | | |
| Specification size | Volume( L) | CPSI | Remarks |
| Diameter (mm) | Height (mm) |
| 118.4 | 152.4 | 1.68 | 100,200,300 | |
| 118.4 | 203.2 | 2.24 | 100,200,300 | |
| 118.4 | 254 | 2.80 | 100,200,300 | |
| 127 | 203.2 | 2.57 | 100,200,300 | |
| 143.8 | 101.6 | 1.65 | 100,200,300 | |
| 143.8 | 152.4 | 2.47 | 100,200,300 | |
| 143.8 | 177.8 | 2.89 | 100,200,300 | |
| 143.8 | 203.2 | 3.30 | 100,200,300 | |
| 143.8 | 228.6 | 3.71 | 100,200,300 | |
| 143.8 | 254 | 4.12 | 100,200,300 | |
| 143.8 | 304.8 | 4.95 | 100,200,300 | |
| 190.5 | 203.2 | 5.79 | 100,200,300 | |
| 190.5 | 254 | 7.24 | 100,200,300 | |
| 190.5 | 304.8 | 8.68 | 100,200,300 | |
| 228.6 | 203.2 | 8.34 | 100,200,300 | |
| 228.6 | 254 | 10.42 | 100,200,300 | |
| 228.6 | 280 | 11.49 | 100,200,300 | |
| 228.6 | 304.8 | 12.50 | 100,200,300 | |
| 241.3 | 254 | 11.61 | 100,200 | |
| 241.3 | 304.8 | 13.93 | 100,200 | |
| 266.7 | 203.2 | 11.35 | 100,200 | |
| 266.7 | 254 | 14.18 | 100,200 | |
| 266.7 | 280 | 15.63 | 100,200 | |
| 266.7 | 304.8 | 17.02 | 100,200 | |
| 285.75 | 254 | 16.28 | 100,200 | |
| 285.75 | 304.8 | 19.54 | 100,200 | |
| 285.75 | 355.6 | 22.79 | 100,200 | |
| 304.8 | 254 | 18.52 | 100,200 | |
| 304.8 | 280 | 20.42 | 100,200 | |
| 304.8 | 304.8 | 22.23 | 100,200 | |
| 304.8 | 330.2 | 24.08 | 100,200 | |
| 304.8 | 381 | 27.79 | 100,200 | |
| 330.2 | 304.8 | 26.09 | 100,200 | |
| 330.2 | 381 | 32.61 | 100,200 | |
| 330.2 | 432 | 36.97 | 100,200 | |
| Specification size | Volume ( L) | CPSI | Remaiks |
| Length * width | Height(ium) |
| 150x150 | 150 | 3.38 | 26, 50,75,86,100,200 | Square |
| 150x150 | 200 | 4.50 | 26,50,75,86,100,200 | Square |
| 150x150 | 300 | 6.75 | 26,50,75,86,100,200 | Square |
The above is the general specification of DPF. We can also
customize the sizes and specifications required by customers.
|
Company Information
Grace Environmental Protection Technology Co., Ltd. is a technical
enterprise specialized in various types of exhaust gas treatment.
The team has rich internal combustion engine exhaust gas and VOC
treatment experience and more than ten years of working experience,
and is a very few suppliers with the ability to design the whole
process from catalyst to overall solution. At present, the products
cover all kinds of exhaust catalysts, DOC,CDPF,SCR,ASC, etc. At the
same time, they cover waste liquid treatment and indoor air
purification, providing customers with the most competitive
products and services. At present, the company has passed the
certification of ISO14001 environmental management system, ISO9001
international quality certification, AAA enterprise credit rating
and other certifications, and has an annual output of 500,000
litres of catalyst production coating line, complete quality
management system and process control. Various performance testing
capabilities, including SRD,SRF,ICP,BET, etc.!
