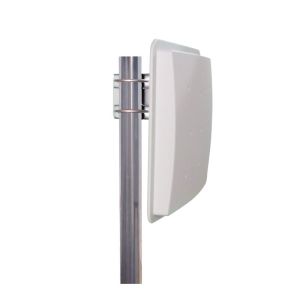

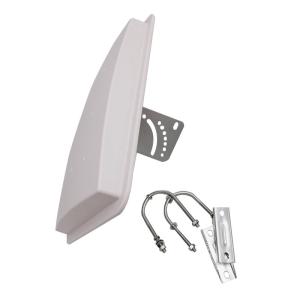

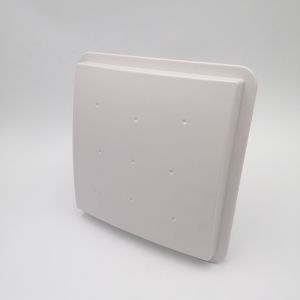

    758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10310-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 5K per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm

    1. Specification

    A. Electrical Characteristics
    Frequency758-830MHz
    S.W.R.<= 2.0
    Antenna Gain14dBi
    PolarizationVertical
    Horizontal Beamwidth70°
    Vertical Beamwidth65°
    F/B>14dB
    Impedance50Ohm
    Max. Power50W
    B. Material & Mechanical Characteristics

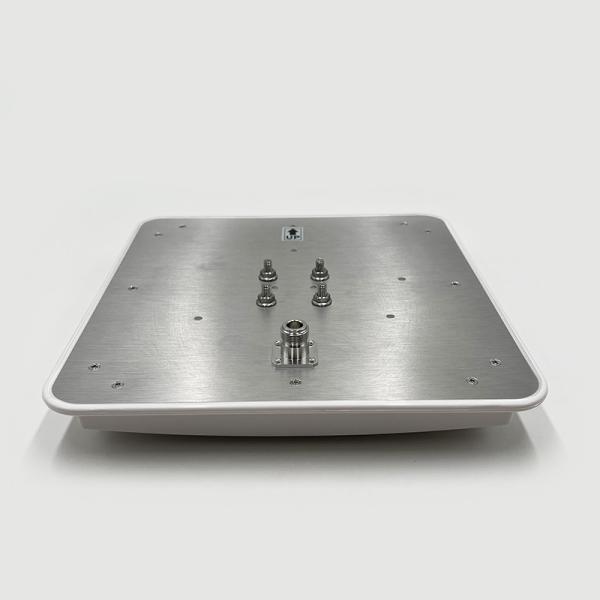

    Connector TypeN Female connector
    Dimension256*256*40mm
    Radome materialABS
    Weight1.0Kg
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 85 ˚C
    Storage Temperature- 40 ˚C ~ + 85 ˚C
    Operation Humidity<95%
    Rated Wind Velocity36.9m/s

    2. Antenna - S Parameter Test Data
    2.1 VSWR



    2.2 Total Efficiency & Gain:


    Frequency(MHz)Gain(dBi)
    7587.1
    7597.1
    7607.1
    7707.5
    7807.9
    7908.0
    8008.2
    8108.1
    8208.3
    8308.1

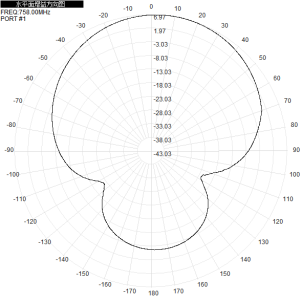

    2.3 Radiation Pattern
    Port12D-Horizontal2D-VerticalHorizontal & Vertical
    758MHz
    780MHz
    830MHz
