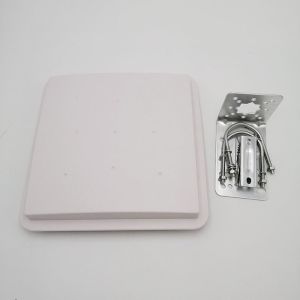

    1.4G 1425-1450M1400-1450M1400-1530M 12dBi UAV directional antenna 256x256x40mm

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10722-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 5K per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    1.4G 1425-1450M1400-1450M1400-1530M 12dBi UAV directional antenna 256x256x40mm

    1. Specification

    A. Electrical Characteristics
    Frequency1400-1530MHz
    S.W.R.<= 2.0
    Antenna Gain12dBi
    PolarizationVertical
    Horizontal Beamwidth50±5°
    Vertical Beamwidth50±5°
    F/B>23dB
    Impedance50Ohm
    Max. Power50W
    B. Material & Mechanical Characteristics
    Connector TypeN Female connector
    Dimension256*256*40mm
    Radome materialABS
    Weight1.2Kg
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 85 ˚C
    Storage Temperature- 40 ˚C ~ + 85 ˚C
    Operation Humidity<95%
    Rated Wind Velocity36.9m/s

    2. Antenna - S Parameter Test Data
    2.1 VSWR




    2.2 Total Efficiency & Gain:


    Frequency(MHz)Gain(dBi)
    140012.2
    141012.3
    142012.1
    143012.2
    144012.3
    145012.1
    146012.1
    147012.2
    148012.2
    149012.3
    150012.4
    151012.3
    152012.1
    153012.2

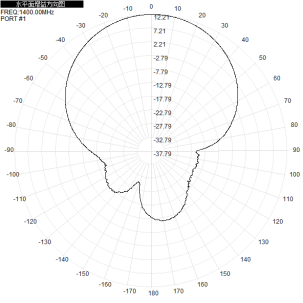

    2.3 Radiation Pattern
    Port12D-Horizontal2D-VerticalHorizontal & Vertical
    1400MHz
    1460MHz
    1530MHz
