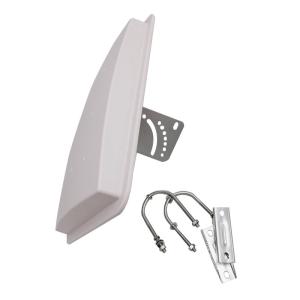

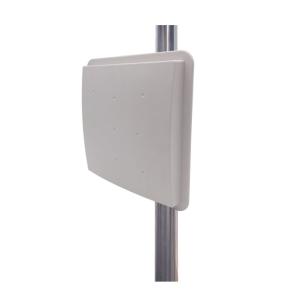

4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm

    Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers

    Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers
    • Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers
    • Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers
    • Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers
    • Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers
    • Buy cheap 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm from wholesalers

    4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10637-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 5K per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm

    1. Specification

    A. Electrical Characteristics
    Frequency1710-2700MHz
    S.W.R.<= 2.0
    Antenna Gain14dBi
    PolarizationVertical
    Horizontal Beamwidth35°
    Vertical Beamwidth35°
    F/B>21dB
    Impedance50Ohm
    Max. Power50W
    B. Material & Mechanical Characteristics
    Connector TypeN Female connector
    Dimension256*256*40mm
    Radome materialABS
    Weight0.7Kg
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 85 ˚C
    Storage Temperature- 40 ˚C ~ + 85 ˚C
    Operation Humidity<95%
    Rated Wind Velocity36.9m/s

    2. Antenna - S Parameter Test Data

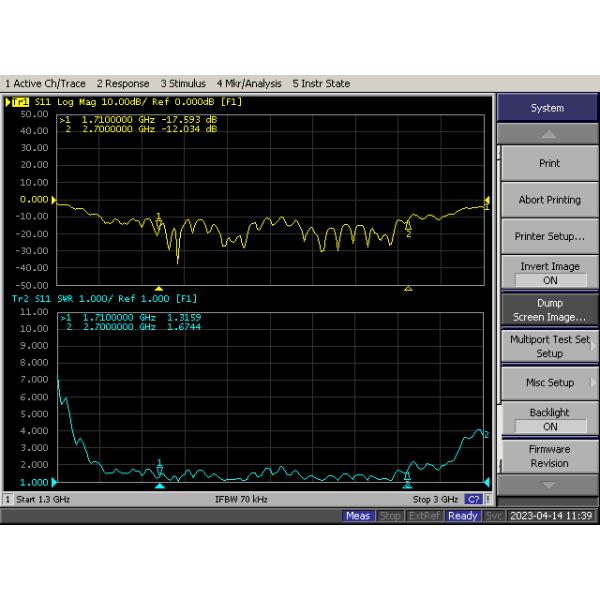

    2.1 VSWR




    2.2 Total Efficiency & Gain:


    Frequency(MHz)Gain(dBi)
    170014.1
    180014.4
    190014.1
    200014.2
    210014.7
    220015.3
    230015.7
    240016.0
    250016.3
    260016.6
    270016.2
    2.3 Radiation Pattern
    Port12D-Horizontal2D-VerticalHorizontal & Vertical
    1710MHz
    2200MHz
    2700MHz

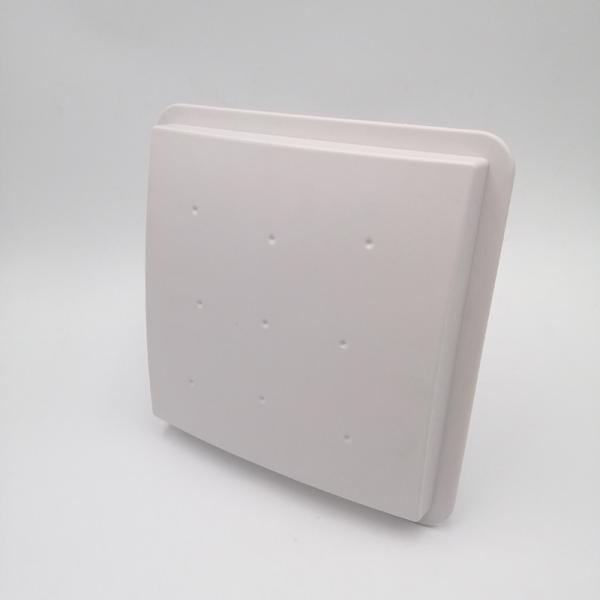

    Quality 4G LTE 1710-2700M 14dbi directional flat antenna 256x256x40mm for sale
