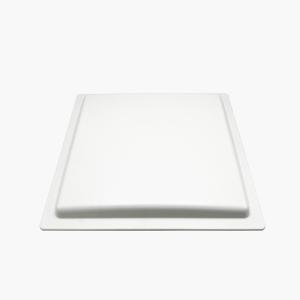

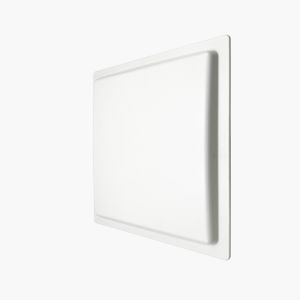

    N Female 1650-1750M 16dbi Single Polarized Directional Antenna

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10967-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 5K per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    N Female 1650-1750M 16dbi Single Polarized Directional Antenna

    1. Specification

    A. Electrical Characteristics
    Frequency1015-1215MHz
    S.W.R.<= 2.0
    Antenna Gain16dBi
    PolarizationVertical
    Horizontal Beamwidth25±5°
    Vertical Beamwidth25±5°
    F/B>30dB
    Impedance50Ohm
    Max. Power50W
    B. Material & Mechanical Characteristics

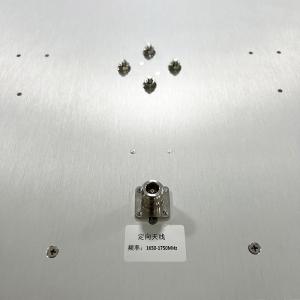

    Connector TypeN Female connector
    Dimension450*450*40mm
    Radome materialABS
    Weight3.2Kg
    C. Environmental
    Operation Temperature- 40 ˚C ~ + 85 ˚C
    Storage Temperature- 40 ˚C ~ + 85 ˚C
    Operation Humidity<95%
    Rated Wind Velocity36.9m/s

    2. Antenna - S Parameter Test Data
    2.1 VSWR


    2.2 Total Efficiency & Gain:


    Frequency(MHz)Gain(dBi)
    165016.1
    166016.2
    167016.1
    168016.2
    169016.2
    170016.3
    171016.1
    172015.9
    173016.1
    174015.9
    175015.8

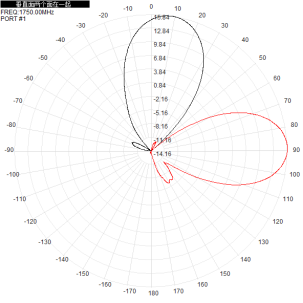

    2.3 Radiation Pattern
    Port12D-Horizontal2D-VerticalHorizontal & Vertical
    1650MHz
    1700MHz
    1750MHz

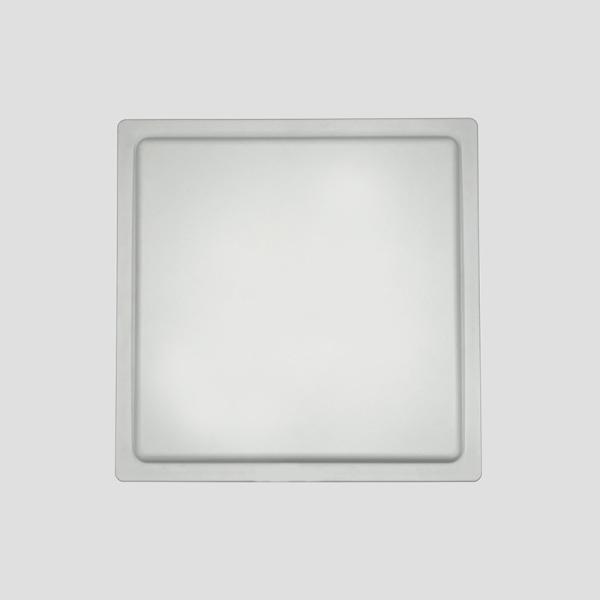

    Quality N Female 1650-1750M 16dbi Single Polarized Directional Antenna for sale
