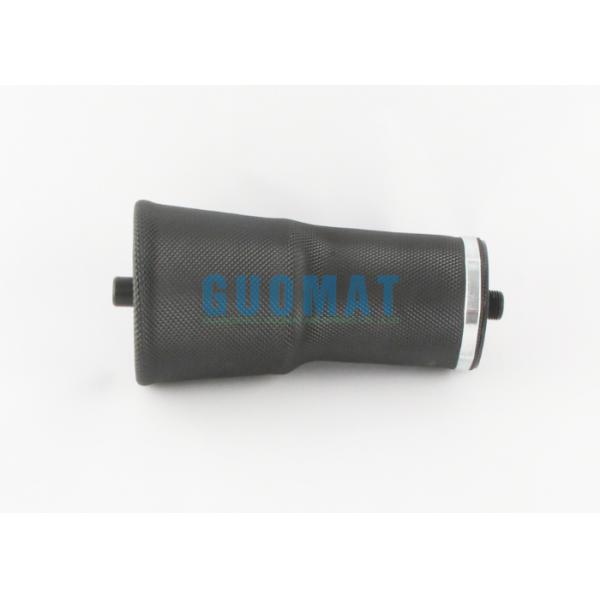

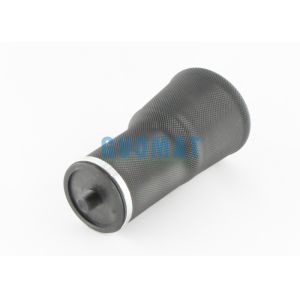

1S6-641 Goodyear Cabin Air Spring Bellow W02-358-7155 Firestone Sleeve Type Air Spring

1S6-641 Goodyear Cabin Air Spring Bellow W02-358-7155 Firestone Sleeve Type Air Spring

Product Description

GUOMAT Cab Air Shock: G6641

Material: Plastic Parts

Warranty: 12 Months

Type: Sleeve Type

Package: Strong Carton

Application: International Heavy Duty, Freightliner Heavy Duty

Delivery Time: 1-7 Working Days

Patment: You can pay PayPal. L/C,Western Union,T/T

We can Replace the Following Manufacturer Numbers

GOODYEAR Part Number: 1S6-641

GOODYEAR Part Number: 1S 6-641

GOODYEAR Part Number: 1S6641

GOODYEAR Piston Number: 566-08-7-215

GOODYEAR Piston Number: 566 08 7 215

GOODYEAR Piston Number: 566087215

FIRESTONE Part Number: W033587155

FIRESTONE Part Number: W03 358 7155

FIRESTONE Part Number: W03-358-7155

PETERBILT Part Number: R81-6002

PACCAR Part Number: 20-19036

LINK CAB AND SEAT SPRINGS 1101-0040

Working Principle of Truck Cab Air Spring

(1) Static equilibrium state
When the truck is stationary and the load is evenly distributed, the air spring system supports the weight of the cab through the preset air pressure to keep it level.

The height control valve detects the relative height of the cab and the frame. If the height is normal, the air circuit is closed to maintain the current air pressure.

(2) Dynamic shock absorption process

• When encountering bumps (such as road impact):
• When the wheel moves upward, the frame pushes the air bag to compress, and the air pressure in the bag increases instantly, absorbing the impact energy.
• After compression, the air bag cushions the vibration through the elastic deformation of the air, reducing the impact force transmitted to the cab.
• Then, the air bag slowly rebounds (air pressure is released) to prevent the cab from shaking violently.
• Through continuous bumpy roads:
• The air bag's high-frequency compression-rebound, combined with the shock absorber (if any) to damp vibration, creates a "suspension" effect, significantly reducing the bumpy feeling.

(3) Automatic height adjustment When the load changes (e.g., adding equipment to the cab):

The cab sinks → The height control valve detects the height reduction → The inflation passage opens, the compressor adds air to the airbag → The air pressure increases, and the cab is raised to the set height. When the load decreases: The cab rises → The height control valve triggers the exhaust valve to release excess air → The air pressure decreases, and the cab returns to the equilibrium position.

(4) Dynamic adaptation of air pressure Some advanced systems are equipped with an electronic control unit (ECU) that can adjust the air pressure according to:

• Vehicle speed: Increase the air pressure at high speeds to enhance stability, and decrease the air pressure at low speeds to enhance comfort.
• Road conditions: The sensor identifies bumpy roads and automatically adjusts the airbag hardness (e.g., when a mining vehicle is switched to "off-road mode").

Goodyear Cab Air Shock Absorber

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
