Detailed Product Description
| Product Name: | Pulse Valve Membrane | Membrane Material: | TPE |
|---|
| Fitted Pulse Valve Port: | 1'' | Fitted Pulse Valve Model: | AE1825B, AE2825B, AE1825R, AE2825R, AE1822B, AE2822B |
|---|
| Highlight: | M/D25 Diaphragm Repair Kit,TPE Diaphragm Repair Kit,Auetl TPE Diaphragm |
|---|
Product Description:
The M/D series membrane (such as M/D25 type) is made of
thermoplastic elastomer (TPE) material, which has excellent fatigue
resistance and wide temperature adaptability (-40 ℃~100 ℃),
designed specifically for the high-frequency blowing and cleaning
requirements of Autel pulse valves. The three-layer composite
structure (sealing layer+polyester fiber skeleton+elastic layer)
ensures fast response (≤ 30ms) and long lifespan (standard 1
million actions) in high-pressure environments.
Applications:
Baghouse Dust Collector Jet Pulse System
The M/D series diaphragms (such as the M/D25 model) serve as the
core sealing and actuation components of pulse valves in dust
collectors. They control the instant release of compressed air to
conduct high-frequency jet pulses (multiple times per second) to
clear dust from the surface area of filter bags.
Operation:
- Electrical signal triggers the pulse valve → Diaphragm opens
instantaneously → Compressed air is injected into the filter bag
through the jet tube → Filter bag expands and shakes off dust →
Diaphragm resets and closes promptly.
Compatible Valve Models:
- Autel AE1825B, AE2825B, AE1825R, etc., 1-inch pulse valve 1;
- MD series pulse valves (such as MD120, MD125, MD140S, etc.),
particularly suitable for valve sizes ranging from 20mm to 76mm 36.
Powder Conveying and Silo Arch Breaking
Used for clearing blockages in pneumatic conveying pipelines or
breaking material bridges in silos, the pulse air flow prevents
clogging and is suitable for scenarios involving coal dust, grain,
plastic granules, and more 36.
Industry | Application | Compatible Diaphragm Models | Key
Requirements
| Industry | Application | Compatible Diaphragm Models | Key Requirements |
|---|
| Concrete Manufacturing | Kiln rear dust collector, raw material grinding dust removal | M/D25, MD140S | Resistant to normal temperature dust (<80°C) |
| Steel Smelting | Sintering machine head dust removal, blast furnace gas purification | MD150S, MD162S | Requires a cooler (temperature ≤60°C) |
| Wood Processing | Sawdust collection system | MD125 | Explosion-proof design |
| Food/Chemical Industry | Powder pneumatic conveying blockage clearing | M/D25 (TPE material) | Oil-free dry air (FDA compatibility) |
| Waste Incineration | Flue gas treatment system | Requires EPDM/FKM diaphragms | Corrosion-resistant (acidic gases) |

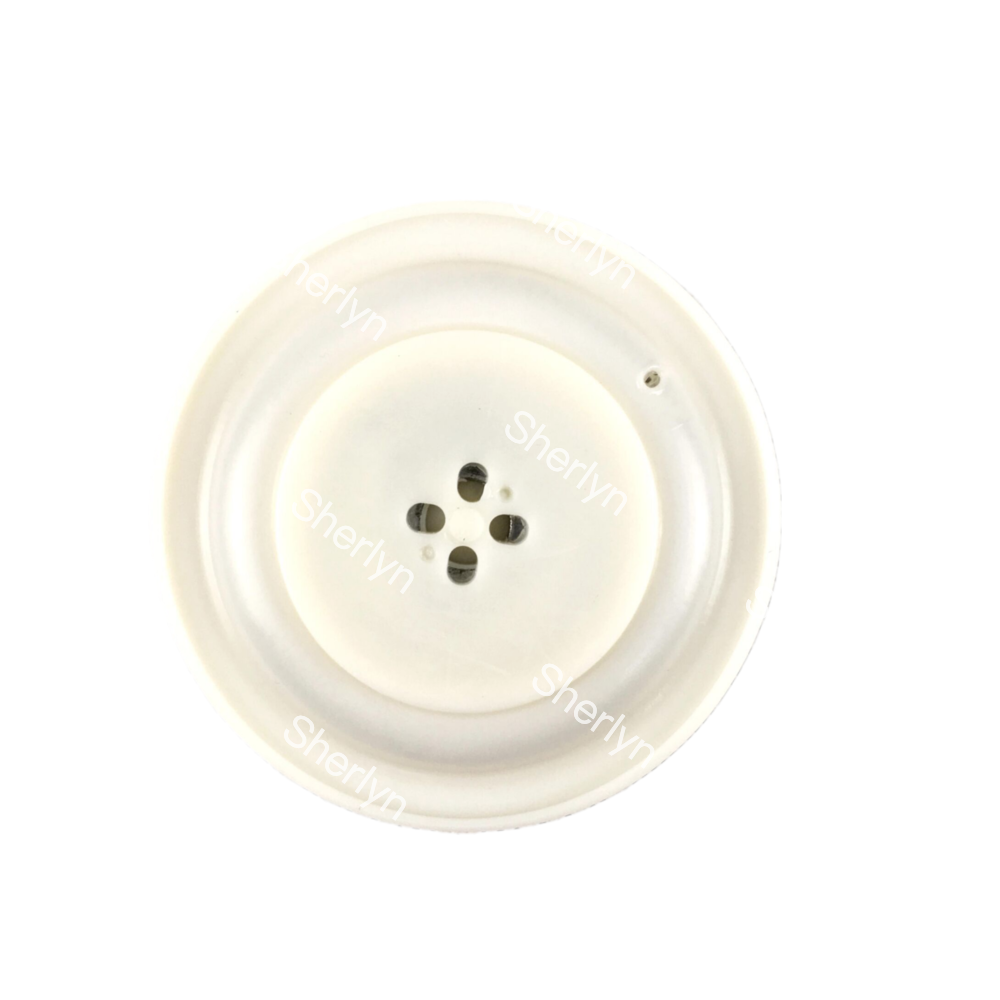

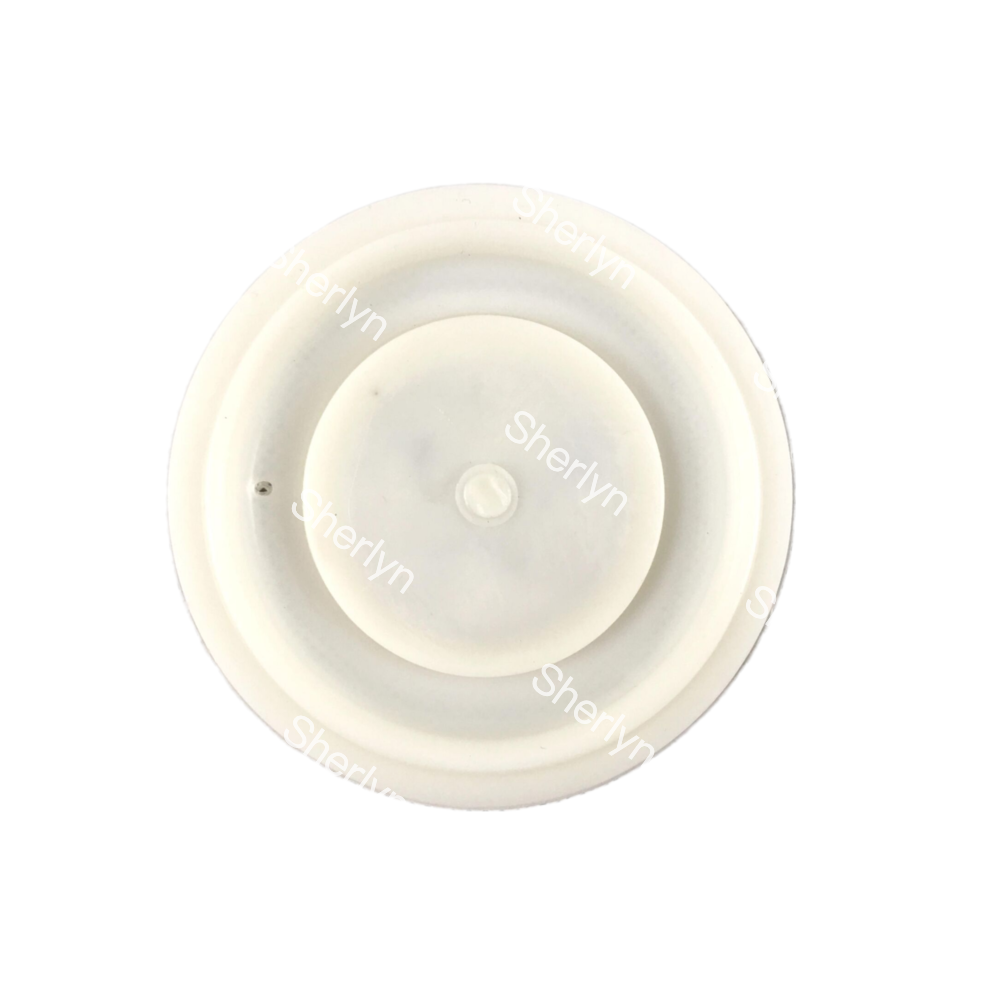

M/D25 TPE Diaphragm Repair Kit For 1'' AE1825B AE2825B AE1825R
AE2825R
The diaphragm is the most important part of the pulse valve. When
the pulse valve is energised, the trapped air above pulse valve
diaphgram is quickly exhausted causing fast opening of main
diaphragm valve. When the pulse valve is de-energised , air escapes
through bleed hole of main pulse valve to balance the diaphragm
pressure and instantly closes the pulse valve.
Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ
| Diaphragm | Diaphragm | Pulse Valve | Pulse Valve | Diaphragm |
| Order Code | Reference No | Model No | Port Size | Material |
| AE18 | M/D20 | AE1818B, AE2818B | 3/4'', 1'' | TPE (Standard) |
| AE1822B, AE2822B | FKM+PTFE (High Temperature) |
| AE25 | M/D25 | AE1825B, AE2825B | 1'' |
|
| AE1825R, AE2825R |
|
| AE40 | M/D40 | AE1440B, AE2440B | 1-1/2'' |
|
| AE1440R, AE2440R |
|
| AE50 | M/D50 | AE1450B, AE2450B | 2'', 2-1/2'' |
|
| M/D60 | AE1460B, AE2460B |
|
| AE75 | M/D75 | AE1475I12, AE2475I12 | 3'' |
|
