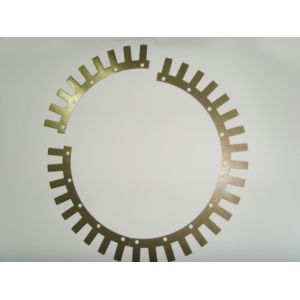

Custom Stator Lamination Segment – High Precision Silicon Steel
with Low Loss, High Efficiency, and Reliable Performance for Motors
and Generators
Product Description:
This precision stator lamination segment is manufactured from high-grade laminated silicon steel sheets for superior magnetic permeability, reduced core loss, and stable
structural integrity. Using high-speed progressive stamping technology, each segment is cut with tight tolerances to ensure perfect alignment during assembly into a complete stator
core.
The arc-shaped design with precision-engineered slots allows for
efficient coil winding, while positioning holes ensure accurate
stacking and assembly. Available in a variety of thicknesses, arc lengths, slot numbers, and surface coatings, it can be fully customized to meet specific motor or generator
requirements.
Widely used in industrial motors, wind turbine generators, hydroelectric
generators, and large electrical machinery, this product guarantees high efficiency, long service life, and reliable performance even in demanding operating conditions.
Features:
High Magnetic Conductivity – Improves motor efficiency and reduces energy loss
Low Core Loss – High-quality silicon steel minimizes eddy current and hysteresis
losses
Precision Stamping – ±0.01 mm tolerance for consistent stacking accuracy
Customizable Design – Arc length, slot number, hole position, and thickness can be
tailored
Durable Surface Protection – Optional insulation coating or anti-rust treatment
Easy Assembly – Positioning holes for accurate lamination stacking
Technical Parameters:
| Parameter | Specification (Example) |
|---|
| Material Grade | 35W300 / 50W470 / 20W130 | | Lamination Thickness | 0.2 / 0.35 / 0.5 mm | | Segment Arc Length | 100–500 mm | | Slot Number | Custom (e.g., 12, 24, 36) | | Outer Diameter | 200–1200 mm | | Inner Diameter | 50–800 mm | | Surface Treatment | Epoxy Coating, Anti-Rust Oil | | Manufacturing Process | High-Speed Progressive Stamping | | Tolerance | ±0.01 mm |
|
