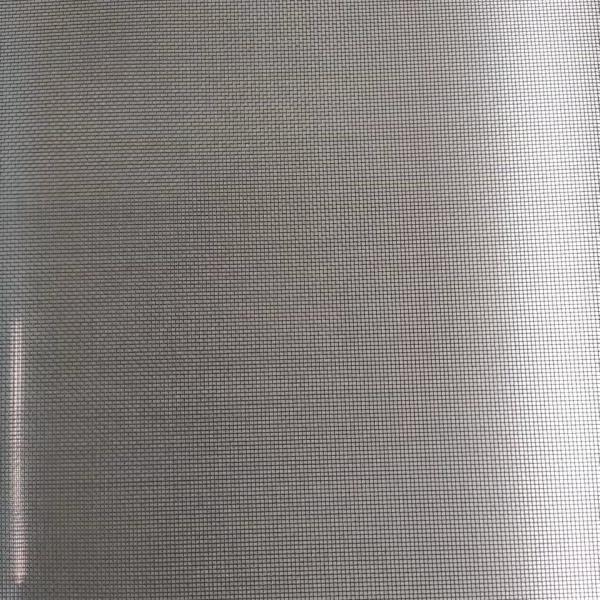

Customized Roll Size Stainless Steel Plain Weave Filter Mesh Screen
For Filter Layer
Stainless Steel Woven Mesh Introduction
Woven wire mesh or woven wire cloth, is woven by machine. It is
similar to the process of weaving clothing, but it is made of wire.
The mesh can be woven in different weave styles. Its purpose is to
produce solid and reliable products to adapt to various complex
application environments.High precision technology makes the
production cost of woven wire mesh higher, but it also has a very
wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless
steel wire mesh, 310 stainless steel wire mesh, 904L stainless
steel wire mesh, 430 stainless steel wire mesh, and other stainless
steel grade. The most popular ones are 304 stainless steel wire
mesh and 316 stainless steel wire mesh, which can be used in most
application environments and are not expensive.
And some special materials are used to meet the high requirements
of the use environment, such as Inconel wire mesh, Monel Wire Mesh,
Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
Specification
| Product Name: | Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade: | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
| Special Material Options: | Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range: | 0.02 - 6.30mm |
| Hole Size Range: | 1 - 3500mesh |
| Weave Types: | Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch
Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width: | Standard less than 2000 mm |
| Mesh Length: | 30m rolls or cut to length, minimum 2m |
| Mesh Type: | Rolls and sheets are available |
Product Advantages
Exceptional Corrosion Resistance
High Strength and Durability
Versatility in Weave Patterns and Mesh Sizes
Reusability
Product Applications
Stainless Steel Woven Wire Mesh has excellent acid resistance,
alkali resistance, heat resistance and corrosion resistance.
Stainless steel weave screen is used in chemical industry,
petroleum, aerospace, sewage system, medicine, automobile,
industrial field, etc. Stainless steel woven wire mesh has become a
widely used material. The hygiene standards and chemical resistance
of Stainless Steel Woven Screen are crucial, so it plays an
important role in the screening and filtration of solids, liquids
and gases in various industrial fields.
Packing
Woven wire mesh is available on the roll or cut to size. We provide
fine and strict packaging to ensure that the goods will not be
damaged. The usual packing is wooden case, or as customized.
woven bag + safety belt + pvc film + wooden case
Customization Services
- Size & Shape: Custom-cut panels, rolls, or cylindrical sleeves to fit equipment
dimensions
- Edge Finishing: Options include hemmed edges, welded frames, or reinforced borders
for heavy-duty use
- special Designs: Combine multiple micron grades in one mesh for multi-stage
filtration systems
