    Advanced Smart Protection Board 4S 10A For High-Performance Applications

    Ask Lasest Price
    Brand Name : BAKTH/OEM/Neutral
    Model Number : BAKTH-0040100066-01
    Certification : Certified with RoHS / IEC62133 certification
    Price : USD15.0-USD30.0/PCS
    Payment Terms : ,T/T
    Supply Ability : Daily Delivery Capability: Approx. 1,800 units/day
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Advanced Smart Protection Board 4S 10A For High-Performance Applications

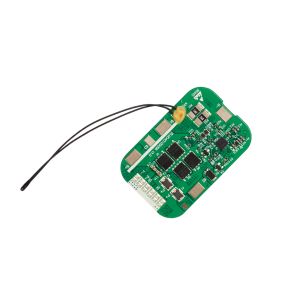

    Advanced Smart Protection Board 4S 10A

    Designed for high-performance multi-device applications, this protection board delivers superior performance and reliability for modern high-demand systems.

    Product Specifications
    AttributeValue
    Model NumberBAKTH-0040100066-01
    Series Supported4S
    Continuous Discharge Current10A
    Balancing TypeActive Balancing / Passive Balancing (Optional)
    Over Charge Detection Voltage (Cell)3.750V±0.050V (Adjustable)
    Over Discharge Detection Voltage (Cell)2.500V±0.050V (Adjustable)
    Customization AvailableYes
    Warranty12 months
    Technical Details
    Compatible Interface:
    SMBUS
    Dimensions:
    53.5mm * 35mm * 2.5mm
    Certification Standards:
    IEC62133
    Protection Type:
    4S lithium battery protection board
    Protections:
    OV, UV, OC, SC, OT, Balance
    Discharging Temperature:
    -20°C to 70°C (Adjustable)
    Charge Temperature:
    0°C to 55°C (Adjustable)
    Key Features
    • SMBUS communication protocol provides real-time feedback on battery status (SOC, SOH, temperature)
    • Comprehensive protection against over-voltage, under-voltage, short-circuit, over-current, and temperature extremes
    • Optional active balancing function extends battery pack life and improves cell consistency
    • Modular design for easy integration into various industrial and solar system applications
    • Adjustable protection parameters for customized operation
    Application Scenarios
    • Energy Storage Systems (ESS)
    • Electric Power Tools
    • Home Solar Battery Systems
    • Drones and DIY Custom Li-ion Battery Packs
    • Electric Vehicles and High-Power Applications
    Warranty & Support
    • 12-month warranty with lifetime technical support
    • 100% tested before shipment to ensure safety and reliability
    • Dedicated account manager and technical support with 48-hour response
