    OS1 OS2 Self Supporting GYXTC8S Optical Fiber Cables

    Ask Lasest Price
    Brand Name : Corning /CY COM
    Model Number : GYXTC8S
    Certification : ISO9001/CE/ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 200KM Per week
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    OS1 OS2 Self Supporting GYXTC8S Optical Fiber Cables

    OS1 OS2 Self Supporting GYXTC8S Optical Fiber Cables

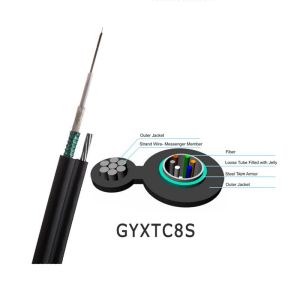

    Figure 8-Like self-supporting Center Tube Optial Cable GYXTC8S Fiber optic Cable PE jacket


    Description

    Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.


    Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties

    The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance With small cable diameter, light cable weight, self-supporting, Low dispersion and attenuation


    Features

    * High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
    * Good mechanical and temperature performance
    * High strength loose tube that is hydrolysis resistant
    * Special tube filling compound ensure a critical protection of fiber
    * The following measures are taken to ensure the cable watertight:
    * Steel wire used as the central strength member
    * Loose tube filling compound
    * 100% cable core filling
    * steel tape moisture barrier


    Application

    Backbones and Access.
    Installed aerially.


    Technical Data

    Fiber
    Cores
    Cable Diameter (mm)
    Cable Net Weight
    (Kg/km)
    Min. Bending Radius (mm)
    Min. Tensile Strength (N)
    Min. Crush Pressure (N/100mm)
    Static State
    Dynamic State
    Short Term
    Long Term
    Short Term
    Long Term
    2-12
    7.6x14.5
    120
    120
    240
    3000
    1000
    1000
    300
    16-24
    8.2x15.1
    130
    130
    260
    3000
    1000
    1000
    300
    Operating Temperature
    -40 - +70Degrees
    Specification parameter :
    Material of jacket
    Black Polyethylene (PE)
    Color
    Black etc
    Fiber Type
    Single Mode/multi mode
    Fiber count
    2-24Cores
    Installation tensile
    8000N
    Span
    80m to 500m
    Strength member
    Kevlar yarn
    Certification
    Certification
    OEM
    Acceptable
    Application
    telecommunication network
