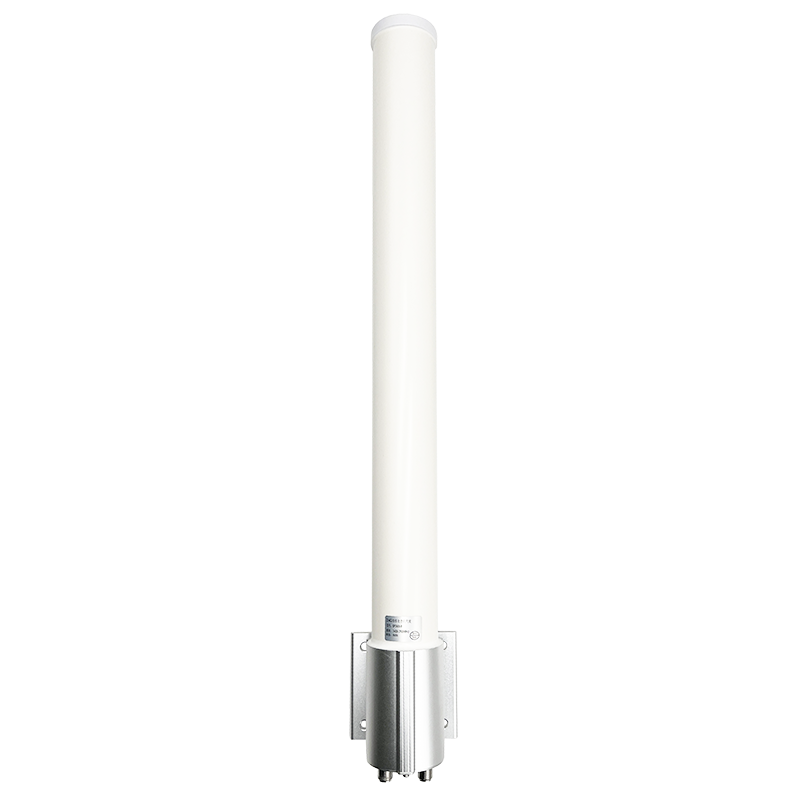

    2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm

    Ask Lasest Price
    Brand Name : Leenz
    Model Number : LZANT-10826-A
    Certification : RoHs
    Payment Terms : T/T
    Supply Ability : 500 per day
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm

    1. Specification

    A. Electrical Characteristics

    Frequency2400-2500MHz
    VSWR< 2.0
    Efficiency≈66%
    Peak Gain8dBi
    Impedance50 Ohm
    PolarizationH+V
    Horizontal Beamwidth360°
    Vertical Beamwidth11-15°
    T90(H) roundness±5
    Max Power50W

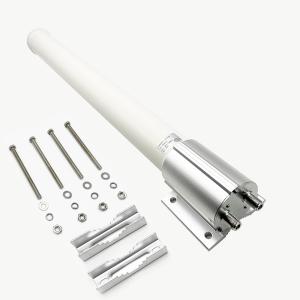

    B. Material & Mechanical
    Connector TypeN-K*2
    DimensionΦ72*800±5mm
    Weight2.8Kg
    Radome materialFiberglass(White)

    C. Environmental

    Operation Temperature- 45˚C ~ +85 ˚C
    Storage Temperature- 45˚C ~ +85 ˚C
    Rated Wind Velocity36.9m/s
    Lighting ProtectionDc grounding

    2. Antenna - S Parameter Test Data
    2.1 VSWR


    2.2 Total Efficiency & Gain:

    Port 1(H)Port 2(V)
    Frequency (MHz)Gain (dBi)Efficiency (%)Frequency (MHz)Gain (dBi)Efficiency (%)
    24006.468.024007.464.5
    24106.366.824108.064.3
    24206.367.424208.666.4
    24306.368.624309.170.4
    24406.067.424409.171.6
    24505.765.124509.172.6
    24605.565.624609.174.5
    24705.367.424708.976.4
    24804.866.324808.574.7
    24904.263.724908.372.6
    25003.662.425008.773.3
    2.3 Radiation Pattern

    Port 1(H)
    3D2D-Horizontal2D-Vertical
    2400MHz
    2450MHz
    2500MHz
    Port 2(V)
    3D2D-Horizontal2D-Vertical
    2400MHz
    2450MHz
    2500MHz
