Detailed Product Description
| Product Name: | Pulse Valve Diaphragm | 1 Set: | 1PC, Diaphragm, 1PC Spring |
|---|
| Seat Material: | Rubber, Nylon | Diaphragm Material: | NBR, FKM |
|---|
| Packaging: | Plastic Bag | Fitted Pulse Valve Model: | RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3 |
|---|
| Highlight: | Goyen K2529 Diaphragm,k2529 Membrane Repair Kit,K2529 Solniod Valve Diaphragm |
|---|
Product Description:
K2529 25 Millennium Buna Diaphragm Kit for Goyen pulse valve
RCAC25T3, RCAC25DD3, RCA25FS3, RCAC25FH3; The diaphragm has strong
oil resistance, acid resistance, high temperature resistance,
alkali resistance and other characteristics, which can easily
ensure the complete synchronous operation with other control
components and control the injection of pulse compressed air. Even
in extremely harsh working environment, it can ensure its normal
operation and long service life.
Applications:
Industrial Dust Removal System
The industrial dust removal system features a bag/filter cartridge
dust collector with pulse cleaning mechanisms. It is commonly
utilized in various industries including cement plants for kiln
tail dust removal and steel plants for blast furnace dust removal.
Within the system, each valve is responsible for controlling 20 to
50 filter bags, while the membrane functions at a high frequency,
performing at least once per minute.
High Temperature/Corrosive Gas Treatment
It is capable of managing high temperature and corrosive gases
effectively.
- Waste incineration flue gas is handled using an FKM film resistant
to temperatures of up to 200°C.
- For acidic and alkaline waste gases from chemical plants, an EPDM
membrane resistant to pH values ranging from 3 to 11 is employed.
Special Medium Environment
When operating in special medium environments:
- In the food and pharmaceutical industry, an EPDM food grade film
provides anti-pollution capabilities.
- For systems containing oil-infused compressed air, an NBR diaphragm
ensures oil resistance and guarantees a proper seal.
Strict Physical Conditions
When facing stringent physical conditions:
- For high-pressure impact scenarios, the system is equipped with a
CA62T/CA76T double diaphragm structure capable of withstanding
pressures of up to 0.85MPa.
- In high humidity environments like cement raw material grinding
operations, the system provides dust removal and anti-condensation
measures.

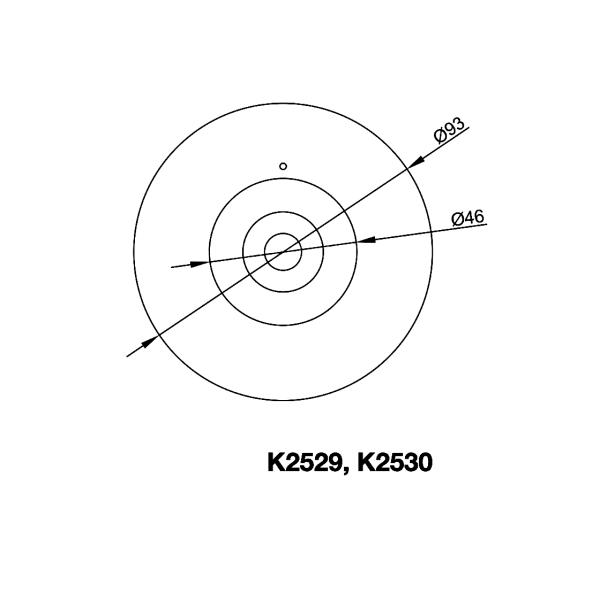

Main Dimension
Ordering Number of Diaphragm For Goyen Dust Collector Pulse Valve:
| Pulse Valve Model | NBR Diaphragm Model | FKM Diaphragm Model | Low Temprature Diaphragm Model |
| RCA10-6T | K1001 | K1002 | / |
| CA20T | RCA20T | K2000 (M1204B) | K2007 | / |
| CA20DD | RCA20DD | K2002 (M764) |
| CA25T | RCA25T | K2501 (M1183B) | K2503 (M1887) | K2504 |
| CA25DD | RCA25DD | K2502 (M736) |
| CAC25FS | RCA25FS |
|
| CA25MM | RCA25MM |
|
| CA32T | RCA32T | K2500 (M1183) | K2503 (M1887) | / |
| K2522 (M736) |
| CA35T | RCA35T | K3500 (M1581) | K3501 | K3502 (M1591) |
| CA40T | RCA40T | K4000 (M1182) | K4007 | / |
| CA40MM | RCA40MM |
| CA45T | RCA45T | K4502 (M2162) | K4503 | K4522 |
| CA45DD | RCA45DD | K4504 (M2187) |
| CA45FS | RCA45FS |
|
| CA40MR | RCA40MR |
|
| CA50T | RCA50T | K5004 (M1638A) | K5000 | / |
| CA62T | RCA62T | K5005 (M1639A) |
| CA76T | RCA76T | K7600 | K7601 | / |
| CA76MM | RCA76MM |
| CA76MR | RCA76MR |
| CA102MM | RCA102MM | K10200 | K10201 | / |
| CA62MR | RCA62MR | K7604 | K7602 | / |
| RCA20M | K2003 (M1174B) | / | / |
| RCAC20T3, ST3, DD3, FS3 | K2016 | K2017 | / |
| RCAC25T3, DD3, FS3 | K2529 | K2530 |
|
| RCAC25FH3 | K2531 | / | / |
|
| Pulse Valve Model | Shockwave Diaphragm Model | FKM Diaphragm Model | / |
| RCAC20T4, ST4, DD4, FS4 | K2034 | K2033 | / |
| RCAC25T4, ST4, DD4, FS4 | K2546 | K2551 | / |
| RCAC25FH3 | K2545 | / | / |
| RCAC25T3, DD3, FS3 | K2549 | / | / |
Support and Services:
Our Product Technical Support and Services team for the Pulse Valve
Diaphragm product is dedicated to providing assistance with
installation, troubleshooting, and maintenance of the product.
Whether you have questions about product specifications, operation,
or performance, our team is here to help.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Details: - Ships within 1-2 business days. - Standard
shipping rates apply. - Tracking information will be provided once
the order is shipped.
