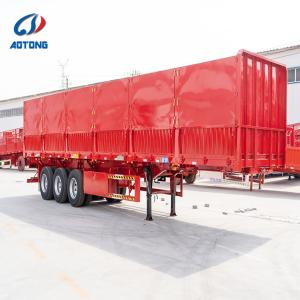

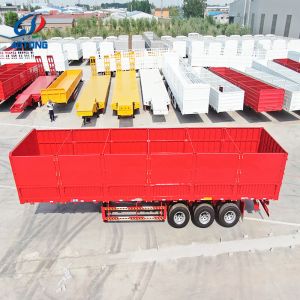

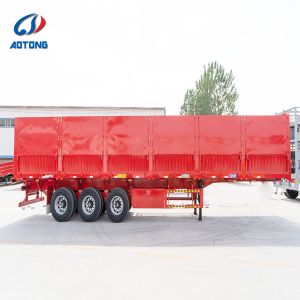

    60T 3-Axle Side Wall Grain Trailer with Mechanical/Air Suspension

    Ask Lasest Price
    Brand Name : AOTONG
    Certification : ISO,CCC
    Payment Terms : T/T
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    60T 3-Axle Side Wall Grain Trailer with Mechanical/Air Suspension

    Tri axle grain trailer for sale is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. These side wall trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.The small door of the grain trailer with bulk sides facilitates the loading and unloading of grain.

    Tare Weight About 7.6T
    Dimension 12500mm*2500mm*2760mm(1200mm sidewall high)
    Load Capacity(T) ≤60T
    Axle 3 axles, 13T/16T, FUWA/BPW/TITAN Brand
    Rim 9.00-22.5 9.75-22.5(Specially designed and for oversea markets)
    Tire 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
    Suspension Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
    Spring leaf 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets)
    King pin JOST brand 2.0 or 3.5 inch(bolted or welded type)
    Landing gear JOST brand D200T or TITAN brand 28Tons
    Main beam Height: 500mm Upper Plate: 14mm Middle Plate: 8mm
    Bottom Plate is 16mm; Material: Q345B Steel
    Side beam 16mm or 18mm steel channel(material: Q235steel)
    Bottom Platform 3mm-thick checkered plate
    Brake chamber WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
    ABS Optional
    Twist Locks Four, Eight or Twelve pieces(lifting type or twist screw type)
    Valve WABCO valve
    Light LED light (specially intended for oversea market)
    Receptacle 7-pin Socket (for 7 wire harness)
    Tool box 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
    Semi Trailer
    Surface Coating
    Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats
    3-Axle Container Flatbed Trailer rear view 3-Axle Container Flatbed Trailer detailed view
    Frequently Asked Questions
    Does your company have your own factory?

    Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

    What is your minimum order quantity?

    One unit.

    Can you satisfy my special requirements?

    Absolutely! We can customize trailers according to your specific requirements.

    What logistics methods do you offer for transportation?

    We provide multiple transportation options:

    • Primary method: Shipping by container or ro-ro/bulk vessel
    • For neighboring countries: Road or rail transport
    • For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX


    Do you offer any additional services?

    Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

    Contact Us

    Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

    Email: juyuan@aotongtrailer.com
    Phone: +86 139 6962 7783

    With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
