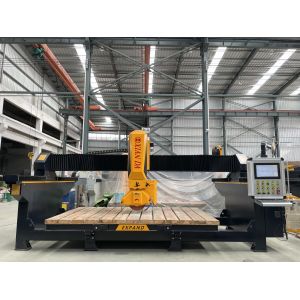

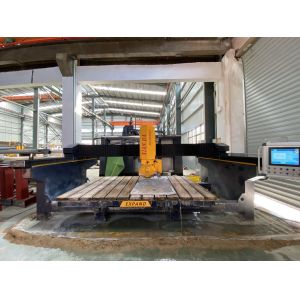

4 Axis Axes CNC Bridge Saw Cutter Machine for Cutting Milling
Drilling Processing Stone Granite Marble Quartz Kitchen Countertop
Slab Tile Sink Cutout W/ Router

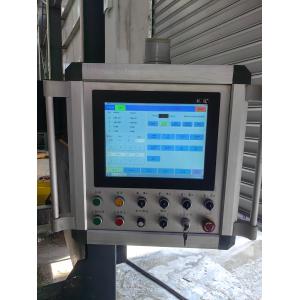

This machine adopts Microcomputer system, easy to operate;
Integrated structure, easy to install; the frame of the machine
body is proceesed and formed by CNC gantry milling center at one
time, using high-precision linear guide sliders, grinding-grade
ball screws, and high-end servo systems. It greatly improves the
stablilty, processing accuracy and production efficiency of the
equipment, and reduces the failure rate. It is suitable for all
kinds of large-scale plate processing with high precision
requirements and high value.
Parameter | Unit | EXPAND 450 | ZDCM-400-B | ZDCM-400-C |
| Control System Type | / | 4 Axis CNC | PLC | CNC |
Blade Diameter | mm | φ350-φ450 | φ300-φ400 | φ300-φ400 |
| Worktable Size | mm | 3200*2000 | 3200*2000 | 3200*2000 |
Max Processing Size | mm | 3200*2000*100 | 3200*2000*80 | 3200*2000*80 |
Worktable Tilting Angle | ° | 0°-85° | 0°-85° | 0°-85° |
| Cutting Head Rotation Degree | ° | 0°-360° | 0°-360° | 0°-360° |
| Cutting Head Chamfer Rotating Degree | ° | 0°-45° | 0°-45° | 0°-45° |
Main Motor Power | kw | 15 | 15 | 15 |
Water Consumption | m³/h | 3 | 3 | 3 |
Outline Dimension | mm | 5000*3100*2700 | 5300*3100*2600 | 5300*3100*2600 |
More Product
Factory Overviews
Fujian Xianda Machinery Co.,Ltd is a leading company for stone
cutting machines and toolsin China, established in 1985 and covers
20,000m³ area which located in Jinjiang Wuli lndustrial area,
nearby the longest and oldest stone bridge in the world, named
"Wuli Bridge" and next to biggest stone market in the world-
Shuitou.
With more than 34 years' experience specializing in developing and
producing a series of diamond wire saw machine, column processing
machine, bridge cutting machine, carving machine, profiling linear
machine, baluster machine, etc. We occupied around 80% market in
China for column processing machines, and own more than 30 overseas
countries users.
Since its foundation in 1985, we keep"Top Technology and Superior
Quality"as our standardfor all machines and got CE, ISO Quality
Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise
Credit Evalution" , etcfor company.And we are always the sponsor
for education as our CEO Mr Roy is enthusiasticabout the public
welfare establishments.
Xianda always keep"Creat the highest value of your stone"as
purpose,your visiting andcontacting is always welcomed.
Certifications
Exhibition
Our Team
Our Service
* We can provide Machine Testing Video and will be strict inspected
and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff
training, so that continuously improve the overall quality of
service.
* We are responsible for receiving and processing customers on
product quality and service quality complaints; We have
professional and technical personnel to guide the installation and
commissioning of your machine and operator training.
FAQQ: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank
receipt.
5. Sales confirm the receipt of down payment . After approval, we
will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.
