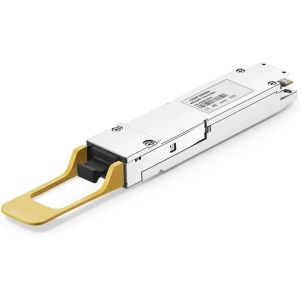

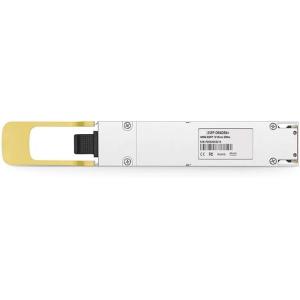

OSFP-400G-DR4 Compatible 400G DR4 OSFP PAM4 Silicon Photonics
Transceiver Module (SMF, 1310nm, 500m, MTP/MPO-12, DOM, Finned Top)

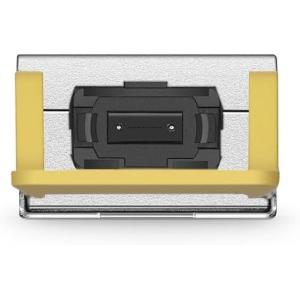

The 400GBASE-DR4 silicon photonics module, MTP/MPO-12 connector, up
to 500m over parallel single-mode fiber. It is compliant with OSFP
MSA, CMIS 4.0 I2C Interface and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel
1310nm optical lanes by one wavelength per lane. It can be used as
4x100G breakout to QSFP-DR-100G.
Feature:
1.Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 10W
2.SiPh-Based Technology for Lower Power, Cost and Higher Density
3.Tested in Targeted Switches for Superior Performance, Quality,
and Reliability
4.Compliant with OSFP MSA, CMIS 4.0
5.Support 4x100G Breakout to QSFP-DR-100G
6.High-speed Electrical Compliant to IEEE 802.3bs
7.8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
8.Interoperable with other IEEE-compliant 400GBASE interfaces where
applicable
Quality Assurance
Excellent quality is the foundation of Comelink's survival and
development. Our operation team are experts with many years'
experience in the optical communication industry. Our manufacturers
are first-class manufacturers in the industry. Many of them have
the qualification of OEM for first-class system equipment
manufacturers.
Specificiation:
| P/N | OSFP-400G-DR4 | Vendor Name | Comelink |
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.9~+4.0dBm | Receiver Sensitivity | < -4.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | OSFP MSA, IEEE 802.3bs | Application | 400G Ethernet, Datacenter Enterprise Networking, Infiniband
Interconnects |
Application:
* InfiniBand NDR
* 400G DR4 applications with FEC
* 4x100GbE breakout applications
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to
ensure you get the high quality and reliable optics.
Unleash HPC Power with InfiniBand Architecture
We provides the Infiniband network solution, offering significant
advantages in terms of high-speed, low latency, scalability, and
efficiency.
Flat Top OSFP Connector Shell
The OSFP shell has a flat top and is used in adapters, such as
ConnectX-7 InfiniBand Adapter Cards.
