GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial

    Buy cheap GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial from wholesalers

    Buy cheap GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial from wholesalers
    • Buy cheap GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial from wholesalers
    • Buy cheap GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial from wholesalers
    • Buy cheap GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial from wholesalers

    GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial

    Ask Lasest Price
    Brand Name : Jiqian/Customize
    Model Number : GYTS-48B1
    Certification : CE/ISO9001/RoHS/FCC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60000KM/month
    Delivery Time : 3-5 days, it depends on your quantity
    • Product Details
    • Company Profile

    GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial

    The 2, 4, 6, 8, 12, 24, 32, 48 Cores Armoured Optical Fiber Cable GYTS is designed for high-performance underground fiber optic installations. Equipped with a robust armoured layer, this cable ensures superior protection against mechanical damage and environmental factors. Available in multiple core configurations, it provides excellent flexibility and reliable data transmission over long distances. Ideal for telecom networks, data centers, and other critical communication infrastructures.

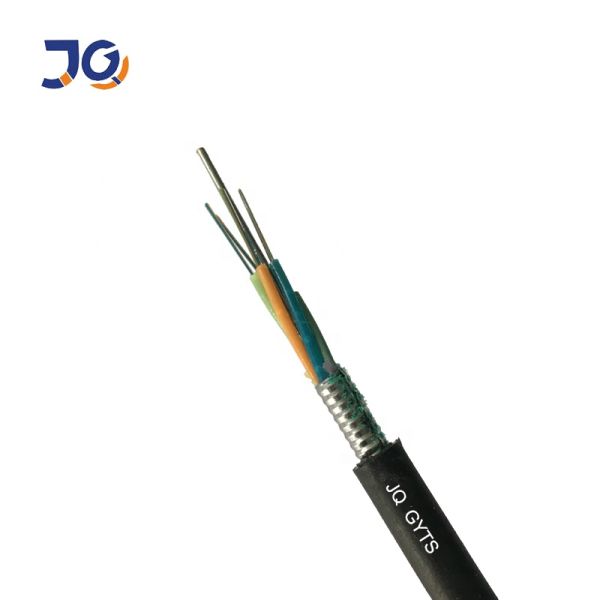

    Structure feature

    • Loose tubes (or fillers) are stranded around a central metal strength member.

    • The core is wrapped with corrugated steel tape and protected by a PE outer jacket.

    • The tubes, made from temperature-resistant materials, house double-coated single-mode or multi-mode fibers.

    Product feature
    1. Fibre type selection

    2. Fibre colour coding

    3. Excellent water resistance

    4. High crush resistance

    5. Sheath material options

    6. Low attenuation and dispersion

    7. Flexible and bendable

    Technical Parameters:
    Cable Type (increased by 2fibers)
    Fiber Count
    Tubes+Fillers
    Cable Diameter mm
    Cable Weight kg/km
    Tensile Strength Long/Short Term N
    Crush Resistance Long/Short Term N/100mm
    Bending Radius Static/Dynamic mm
    GYTS 2 ~ 30
    2~30
    5
    9.5
    80
    600/1500
    300/1000
    10D/20D
    GYTS 32 ~36
    32~36
    6
    9.7
    97
    600/1500
    300/1000
    10D/20D
    GYTS 38 ~60
    38~60
    6
    10.5
    109
    600/1500
    300/1000
    10D/20D
    GYTS 62 ~72
    62~72
    6
    11.5
    126
    600/1500
    300/1000
    10D/20D
    GYTS 74 ~96
    74~96
    8
    13.2
    153
    600/1500
    300/1000
    10D/20D
    GYTS
    98 ~120
    98~120
    10
    14.6
    182
    600/2000
    300/1000
    10D/20D
    GYTS
    122 ~ 144
    122~144
    12
    16.5
    221
    600/2500
    300/1000
    10D/20D
    GYTS
    146 ~ 216
    146~216
    18
    16.5
    221
    600/2500
    300/1000
    10D/20D


    Fiber Tube Color:
    Packaging Details
    • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

    • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

    Delivery
    For large orders: by sea (LCL or FCL)
    For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
    Exhibition Picture

    Frequently Asked Questions (FAQ)

    1. What is a fiber optic cable?

    Fiber optic cables transmit data using light signals, offering faster speeds and higher bandwidth than traditional copper cables.

    2. What types of cables do you offer?

    We offer armoured, drop, and loose tube fiber optic cables, suitable for various applications like underground and FTTH installations.

    3. What is the core count available?

    We offer cables with 2, 4, 6, 8, 12, 24, 32, and 48 cores, with custom core counts on request.

    4. What’s the difference between single-mode and multi-mode fiber?

    • Single-mode: Best for long-distance, high-speed communication.

    • Multi-mode: Ideal for shorter distances and higher data transmission rates.

    5. What is the packaging for fiber optic cables?

    Cables are packed in fumigated wooden drums, with an outer layer of polyethylene sheets and strong wooden battens for protection.

    6. How do I choose the right fiber optic cable?

    Choose based on core count, type of fiber (single-mode or multi-mode), and the installation environment (indoor, outdoor, underground). We can assist with selecting the best option.

    7. What is the lead time for orders?

    Orders typically ship within 7-10 business days, with longer lead times for custom orders.

    8. Do you provide installation services?

    We do not provide installation directly but can recommend trusted installers.

    9. How can I request a quote?

    You can request a quote by contacting us at [Insert Email], providing your specific needs (core count, cable type, quantity, etc.).
