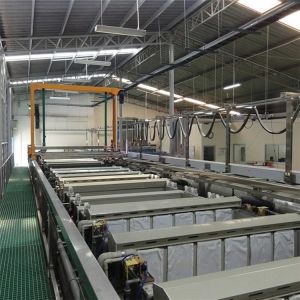

EV Battery Pack Anodizing Equipment for Safety Enhancement

EV Battery Pack Anodizing Equipment for Safety Enhancement

Anodizing Equipment Overview:

This EV battery anodizing equipment enhances battery safety. The anti - EMI anodizing protects battery electronics. The vertical - lift structure saves space. It creates corrosion - resistant coatings on battery casings. With a high - precision control system, it ensures stable performance, meeting the needs of the EV industry.

Partial parameter description of Anodizing Equipment:

Heating and cooling system

5-1 Heating system:

The heating control components are centrally located in the main control cabinet, operating independently. A total of 7 sets of temperature control systems are installed along the entire line, with steam heating pipes configured according to the requirements of each functional slot on the production line. Natural gas is used for heating, and the heating control components are centrally placed in the main control cabinet, operating independently. The inlet steam pipe is made of seamless ￠65×3.5mm steel, the branch pipe is ￠32×3.5mm, ￠25×3.5mm, and the return steam pipe is also made of seamless ￠65×3.5mm steel. High-temperature ball valves DN32 and imported electromagnetic valves are installed, and the pipes are insulated with silica fume. Steam filters are installed at the front end of all electromagnetic valves to ensure effective filtration and precise temperature control. The buyer should install a pressure reduction device on the main steam inlet pipe to ensure safety. The steam source is provided by the customer.

5-2 Cooling system:(This production line is equipped with 3 refrigerators)

5-2-1. Basic parameters:

Power of refrigeration compressor for oxidation tank: 20HP (air-cooled)

Set high and low voltage protection devices

Set the delayed start device to ensure the normal operation of the unit

Set up automatic water level control device

Use of power supply: AC 380V/50HZ three-phase four-wire system

5-2-2. Material description:

Refrigeration compressor is "Taikang" imported compressor.

Other main electrical control parts are imported high quality parts.

The machine shell is made of A3 material and sprayed on the surface.

For a complete technical solution of Anodizing Equipment, please contact me. We will customize the design based on your product technical requirements and factory layout.

Basic process flow Of Anodizing Equipment:

Feed material → 1 Chemical degreasing → 2 Water washing → 3 Alkali etching → 4 Water washing → 5 Water washing → 6 Acid washing → 7 Water washing → 8 Water washing → 9 Anodizing → 10 Anodizing → 11 Anodizing → 12 Water washing → 13 Water washing → 14 Coloring → 15 Water washing → 16 Coloring → 17 Water washing → 18 Coloring → 19 Water washing → 20 Coloring → 21 Water washing → Unloading

Working conditions Of Anodizing Equipment:

Our typical customers:

Installation and training Of Anodizing Equipment:

1. Installation

1) The seller shall provide all details of the equipment installation to the user in order to prepare the installation site.

2) The seller shall install and debug the equipment at the user's factory site.

2. Training

During the installation, the seller provides on-site training for plant operators, including normal operation, maintenance, analysis of operational problems and emergency procedures.

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: A full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces, and their peripheral supporting equipment, etc. The company integrates independent research and development, manufacturing, installation and training, and after-sales service. It also has a complete quality management system, strong technical strength.

With the continuous development of industry at present, enterprises have increasingly higher requirements for the surface treatment of products, and various surface treatment processing-related equipment is adopted by more and more factories. Our equipment is widely used in various industries such as new energy, die-casting, auto parts, electronic circuit boards, bearing parts, optical lenses, vacuum ion plating parts, hardware electroplating, degreasing and waxing parts, powder metallurgy, medical devices, liquid crystal displays, aviation equipment, etc. The company's products not only serve customers all over China, but are also exported to countries such as Thailand, South Korea, Vietnam, the Philippines, Cambodia, Indonesia, Russia and Italy.

We provide reliable services to every enterprise with a demand for surface treatment equipment. Our strong core software development team and overall design team for electronic circuits and mechanical appearance can ensure that our equipment remains in a leading competitive position in the industry and meets the usage requirements of a wide range of customers. Our experienced customer service team Professional technology and services can provide you with all-round 24-hour technical consultation and services before, during and after sales, so that you have no worries at all.

We will continue to uphold the concepts of honest operation, attracting talents widely, technological innovation, craftsmanship spirit and customer service first, so that our equipment can make due contributions in meeting customers' flexible production needs, replacing manual labor, environmental protection, energy conservation, automatic intelligence and other aspects, and push surface treatment equipment to a new level to serve customers all over the world.
