SMB 3G/HD/SD-SDI Optical Micro-Extender
SMB 3G/HD/SD-SDI Optical Micro-Extender Advantages
► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection
necessary
► Transmission distance up to 120km
► CWDM technology to allow up to 16(18) channels to transmit over one
fiber
► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M,
SMPTE310M, SMPTE305M, SMPTE344N
► Compliant with DVB-ASI(EN50083-9)

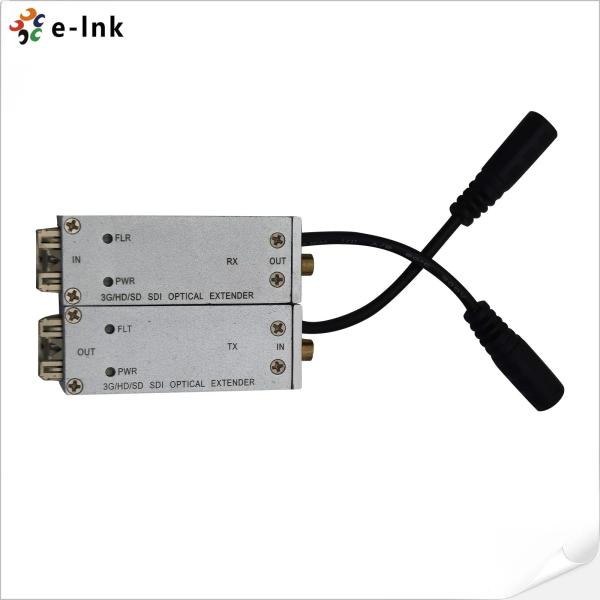

► Convenient instruction of LED status. Fiber link indicator, power.
► PCB board is environmentally friendly (Pb-free)
► PCB board with multilayer design to ensure stable and reliable
signal transmission

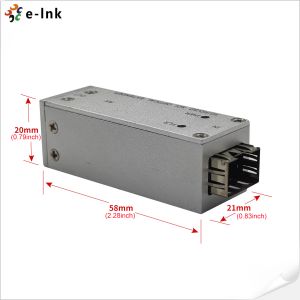

SMB 3G/HD/SD-SDI Optical Micro-Extender Overview

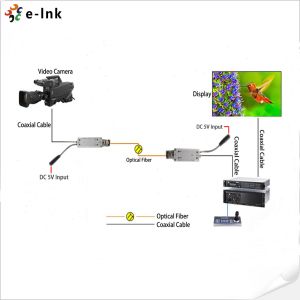

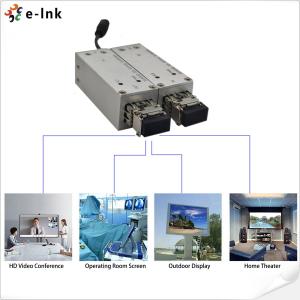

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber
optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI
high definition digital video or one DVB-ASI stream through one
single mode or multimode fiber supporting SMPTE424M, SMPTE259M,
SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced
digital fiber optic transmission technology, there are no
adjustments necessary, simple to set up and easy to operate. The
SDI micro extender series uses 5V power supply with low power
consumption.
SMB 3G/HD/SD-SDI Optical Micro-Extender Technical Indexes
SDI Input |
Video standard | SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M
(SDTI) |
Signal standard | SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
Resolution | 10 Bit |
Signal level | <380mVp-p |
Impedance | 75Ω |
Connector | SMB |
SDI output |
Signal level | 800mVp-p±10% |
Rise/Fall time | <0.8ns |
HD-SDI Jitter | <0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
SDI Jitter | <0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
Impedance | 75Ω |
Connector | SMB |
Optical Interface |
SFP | Simplex LC, 3,125Gbps. ≤120km transmission distance |
Standard SM wavelength | 1310nm, 1550nm |
CWDM wavelength | 1270~1610nm, 20nm grid according ITU-T |
Temperature range | 0~70˚C |
SMB 3G/HD/SD-SDI Optical Micro-Extender Ordering Information
Model | Description |
LNK-M3G-SMB1V-20 | SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC,
Single Mode, 20KM including Transmitter and Receiver, used by pairs |
