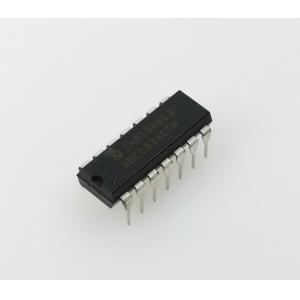

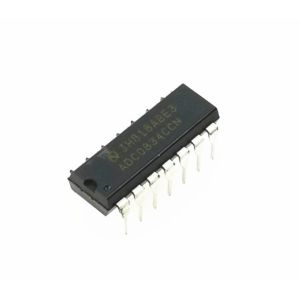

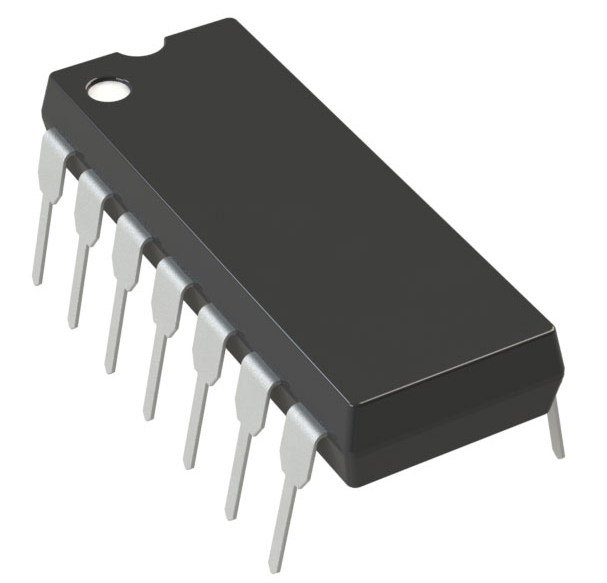

ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution

    Buy cheap ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution from wholesalers

    Buy cheap ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution from wholesalers
    • Buy cheap ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution from wholesalers
    • Buy cheap ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution from wholesalers
    • Buy cheap ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution from wholesalers

    ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : AD7705BRZ
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution

    ADC0834CCN 8-Bit ADC 4-Channel Input 5V Supply Serial I/O Low Power 0°C to +70°C Easy MCU Interface Cost-Effective Solution


    FEATURES

    • TIMICROWIRE Compatible—Direct Interface to COPS Family Processors

    • EasyInterface to All Microprocessors, or Operates “Stand-Alone”

    • Operates Ratiometrically or with 5 VDC Voltage Reference

    • NoZeroor Full-Scale Adjust Required

    • 2-, 4- or 8-Channel Multiplexer Options with Address Logic

    • Shunt Regulator Allows Operation with High Voltage Supplies

    • 0Vto5VInput Range with Single 5V Power Supply

    • Remote Operation with Serial Digital Data Link

    • TTL/MOS Input/Output Compatible

    • 0.3 in. Standard Width, 8-, 14- or 20-Pin PDIP Package

    • 20Pin PLCC Package (ADC0838-N Only)

    • SOICPackage


    KEY SPECIFICATIONS

    • Resolution: 8 Bits

    • Total Unadjusted Error: ±½ LSB and ±1 LSB

    • Single Supply: 5 VDC

    • LowPower: 15 mW

    • Conversion Time: 32 μs


    DESCRIPTION

    The ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the TI MICROWIRE serial data exchange standard for easy interface to the COPS family of processors, and can interface with standard shift registers or μPs.

    The 2-, 4- or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.

    The differential analog voltage input allows increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.


    Typical Application


    INFORMATION

    Category
    Manufacturer
    Texas Instruments
    Series
    -
    Packaging
    Tube
    Part Status
    Obsolete
    Number of Bits
    8
    Sampling Rate (Per Second)
    31.25k
    Number of Inputs
    2, 4
    Input Type
    Differential, Pseudo-Differential, Single Ended
    Data Interface
    SPI
    Configuration
    MUX-ADC
    Ratio - S/H:ADC
    -
    Number of A/D Converters
    1
    Architecture
    SAR
    Reference Type
    External
    Voltage - Supply, Analog
    4.5V ~ 6.3V
    Voltage - Supply, Digital
    4.5V ~ 6.3V
    Features
    -
    Operating Temperature
    -40°C ~ 85°C
    Package / Case
    14-DIP (0.300", 7.62mm)
    Supplier Device Package
    14-PDIP
    Mounting Type
    Through Hole
    Base Product Number

    Drawing
