    CTS 3.3KW 6.6KW 20KW Liquid/Air Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed

    Ask Lasest Price
    Brand Name : CTS OBC
    Certification : MSDS/UN38.3
    Price : 285~695
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 3000pcs/month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    CTS 3.3KW 6.6KW 20KW Liquid/Air Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed










    ╣Dimension & Parameters





    Product parameters of 3.3KW charger


    Specifications
    models
    Input Voltage Range
    Rated Output
    Voltage
    Max Output Voltage
    Max Output Current
    CTSC3-4840A
    AC90~264V
    48V
    66.0V
    40A
    CTSC3-6040A
    AC 90~264V
    60V
    82.5V
    40A
    CTSC3-7240A/7220C
    AC90~264V
    72V
    99.0V
    40A/20A
    CTSC3-8440A/8420C
    AC 90~264V
    84V
    115.5V
    40A/20A
    CTSC3-9632A
    AC90~264V
    96V
    132V
    32A
    CTSC3-12025A
    AC90~264V
    120V
    165V
    25A
    CTSC3-14423A
    AC90~264V
    144V
    198V
    23A
    CTSC3-19210A
    AC90~264V
    192V
    264V
    10A
    CTSC3-31210A
    AC90~264V
    312V
    440V
    10A
    Dimensions:294×210×111(mm) Weight:6.2kg

    Product parameters of 1.5KW charger


    Specifications
    models
    Input Voltage Range
    Rated Output
    Voltage
    Max Output Voltage
    Max Output Current
    CTSZ1P-1230A
    AC90~264V
    12V
    16.5V
    30A/30A
    CTSZ1P-2430A
    AC 90~264V
    24V
    33.0V
    30A/30A
    CTSZ1P-3625A
    AC90~264V
    36V
    49.5V
    25A/25A
    CTSZ1P-4825A
    AC 90~264V
    48V
    66.0V
    25A/20A
    CTSZ1P-6020A
    AC90~264V
    60V
    82.5V
    20A/15A
    CTSZ1P-7218A
    AC90~264V
    72V
    99.0V
    18A/12A
    CTSZ1P-8015A
    AC90~264V
    80V
    110V
    15A/11A
    CTSZ1P-9610A
    AC90~264V
    96V
    132V
    10A
    Dimensions:282×146×82(mm) Weight:3.0kg

    Product parameters of 2KW charger


    Specifications
    models
    Input Voltage Range
    Rated Output
    Voltage
    Max Output Voltage
    Max Output Current
    CTSZ2P-2440A
    AC 90~264V
    24V
    33.0V
    40A/40A
    CTSZ2P-3640A
    AC90~264V
    36V
    49.5V
    40A/30A
    CTSZ2P-4835A
    AC 90~264V
    48V
    66.0V
    35A/25A
    CTSZ2P-6030A
    AC90~264V
    60V
    82.5V
    30A/20A
    CTSZ2P-7225A
    AC90~264V
    72V
    99.0V
    25A/18A
    CTSZ2P-8022A
    AC90~264V
    80V
    110V
    22A
    CTSZ2P-8418A
    AC90~264V
    84V
    115V
    18A/12A
    CTSZ2P-9618A
    AC90~264V
    96V
    132V
    18A/10A
    Dimensions:282×168×90(mm) Weight:3.8kg



    AC Input Wide Voltage Range
    AC90V~264V
    AC Input Frequency Range
    40~70Hz
    With APFC function,Power Factor
    ≥0.98
    Soft Switching Technology,Efficiency
    ≥93.0%
    Protection Level
    IP67
    Operating Temperature
    -40 ℃~+60 ℃
    Storage Temperature
    -55 ℃~+100 ℃
    CAN Communication Function
    optional
    12V 5A Auxiliary Power Supply
    optional
    LED Light Indicator for Charging Process
    standard


    ╣Advantages



    Wide input voltage design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world.



    Fully sealed thermal conductive silicone technology, protection level IP67, good shock resistance, good heat dissipation performance and long service life.



    Wide temperature range: -40℃-+60℃, 100% full load aging test, soft switching technology; low switching loss of power devices, high efficiency (>93%), energy saving



    Waterproof, shockproof, acid-proof, dust-proof, and reinforced isolation design ensure safe operation under harsh conditions.



    The charger has a computer interface, and the charging mode can be adjusted on site. It is suitable for lead-acid batteries, lithium batteries and other batteries to achieve the best match. It is equipped with a CAN communication interface and can communicate with the BMS in real time.



    Intelligent temperature compensation is performed on the battery during the charging process to avoid damage caused by overcharging or undercharging, and to maximize the battery life.

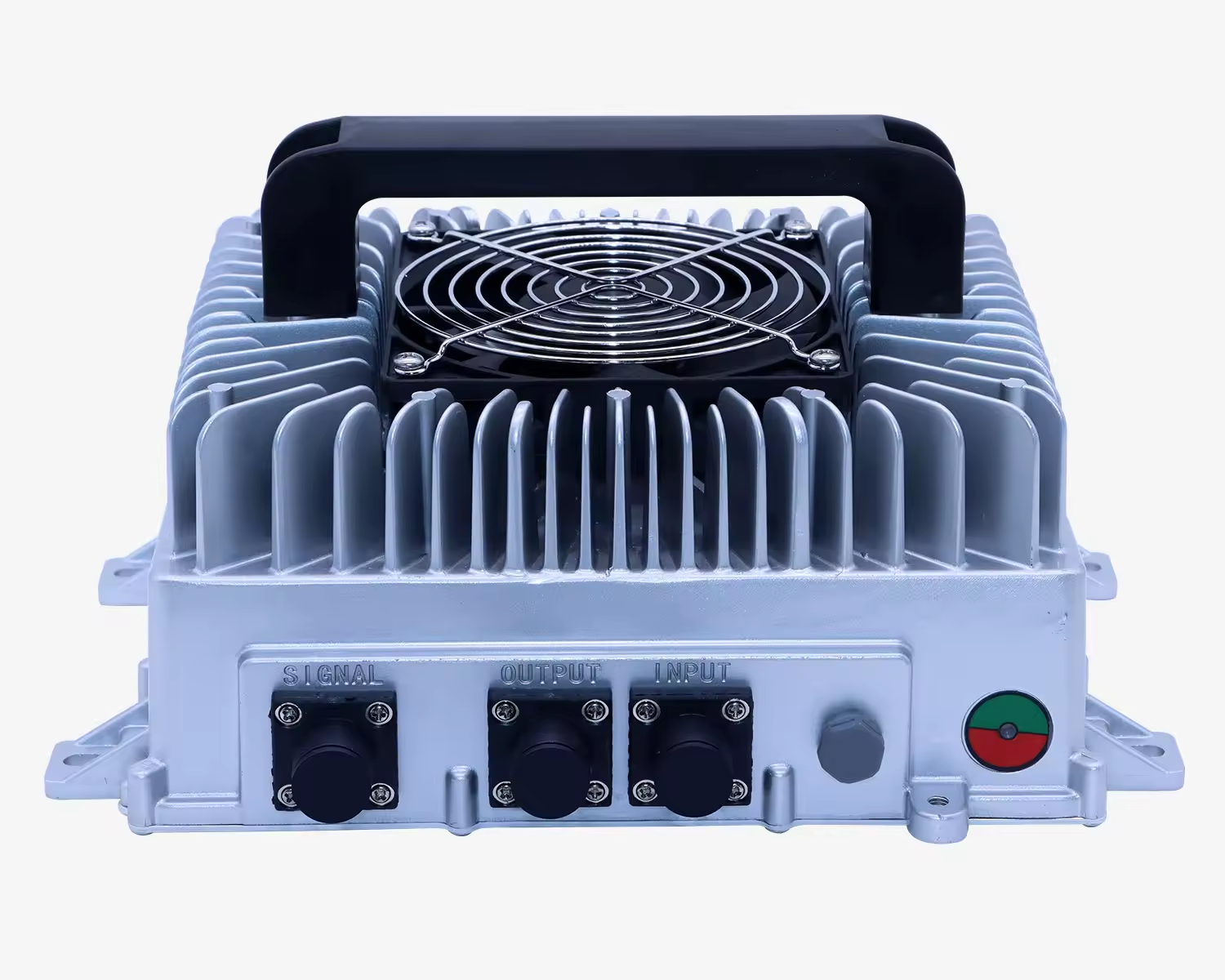

    ╣Input&output Connectors



    ╣Application

    OBC charger is suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc. It can be used for cyclic charging of electric vehicles, motorcycles, sightseeing buses, forklifts, logistics vehicles, sanitation vehicles, golf carts, patrol vehicles, beach cars, ships, communication equipment, AGV intelligent robots, special equipment, etc.
