XLPE Insulated PVC Sheathed Power Cable Flame Retardant 0.6 / 1KV CU / XLPE / PVC

Ask Lasest Price
Brand Name :	CTT CABLE
Model Number :	YJV / N2XY
Certification :	YES
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	6000 meters per day
Delivery Time :	Shipped in 15 days after payment. Port: Yantian port,Shenzhen,China

Add to Cart

Product Details
Company Profile

XLPE Insulated PVC Sheathed Power Cable Flame Retardant 0.6 / 1KV CU / XLPE / PVC

Special Features will be available when required:

Fire Resistance

Oil Resistance

Retardant Flame Cat. A,B,C

Heat Resistance

Low Smoke Zero Halogen

Dimension& Electrical Data:

NYBY 1x (1.5-500)mm2 0.6/1kV
cross section (mm2)	outer diameter approx. (mm)	weight of cable approx (kg/km)	maximum DC resistance at 20℃ (Ω/km)	min bending radius (mm)	current rating in air at 25℃ (A)


1×1.5	5.8	48.7
1×2.5	6.2	60.8
1×4	6.7	78.4
1×6	7.2	100.4
1×10	8.1	156.3	1.83	164	98
1×16	9.6	212.5	1.15	184	132
1×25	11.3	310.8	0.727	216	187
1×35	12.4	407.4	0.524	236	217
1×50	14	522.5	0.387	266	263
1×70	15.9	727.1	0.268	306	331
1×95	17.2	994.4	0.193	342	408
1×120	18.8	1222.8	0.153	374	474
1×150	21	1523.1	0.124	418	550
1×185	23	1860	0.0991	458	633
1×240	25.6	2405.9	0.0754	510	750
1×300	28.2	2997.4	0.0601	564	871
1×400	32	3838.9	0.047	640	1000
1×500	35.6	4877	0.0366	708	1150

NYBY 2x (1.5-240)mm2 0.6/1kV
cross section (mm2)	outer diameter approx. (mm)	weight of cable approx (kg/km)	maximum DC resistance at 20℃ (Ω/km)	min bending radius (mm)	current rating in air at 25℃ (A)


2×1.5	10.1	122.1	12.1	138	27
2×2.5	10.9	150.9	7.41	159	36
2×4	11.9	192.7	4.61	174	48
2×6	12.9	243.7	3.08	189	61
2×10	15.7	346.5	1.83	228	83
2×16	17.9	509.4	1.15	249	113
2×25	21.3	743.4	0.727	297	150
2×35	23.5	964.5	0.524	258	186
2×50	18.7	1046.1	0.387	291	226
2×70	21.5	1447.7	0.268	330	290
2×95	24.1	1984	0.193	369	353
2×120	26.7	2469.4	0.153	411	413
2×150	29.7	3056.8	0.124	453	468
2×185	32.7	3746.1	0.0991	510	540
2×240	36.9	4871.1	0.0754	605	590

NYBY 3x (1.5-300)mm2 0.6/1kV
cross section (mm2)	outer diameter approx.(mm)	weight of cable approx (kg/km)	maximum DC resistance at 20℃ (Ω/km)	min bending radius (mm)	current rating in air at 25℃ (A)


3×1.5	10.5	142.3	12.1	152	23
3×2.5	11.4	180.6	7.41	165	32
3×4	12.5	236.7	4.61	180	41
3×6	13.6	305.7	3.08	197	52
3×10	15.6	446.8	1.83	230	71
3×16	19	665.2	1.15	263	96
3×25	22.6	983.8	0.727	315	130
3×35	25	1291.2	0.524	347	159
3×50	22	1507.3	0.387	351	193
3×70	25.6	2128.9	0.268	411	245
3×95	28.6	2912.4	0.193	459	302
3×120	31.6	3613.7	0.153	510	349
3×150	35.5	4513.8	0.124	579	400
3×185	39.1	5538.9	0.0991	650	464
3×240	43.8	7182.8	0.0754	722	552
3×300	48.4	8965.6	0.0601	783	640

NYBY 4x (1.5-300)mm2 0.6/1kV
cross section (mm2)	outer diameter approx. (mm)	weight of cable approx (kg/km)	maximum DC resistance at 20℃ (Ω/km)	min bending radius (mm)	current rating in air at 25℃ (A)


4×1.5	11.3	168.8	12.1		23
4×2.5	12.3	217.6	7.41		32
4×4	13.5	289.2	4.61	195	41
4×6	14.7	379.2	3.08	213	52
4×10	16.9	561.7	1.83	251	71
4×16	20.8	843.4	1.15	287	96
4×25	24.9	1255.7	0.727	348	130
4×35	27.5	1658.4	0.524	378	159
4×50	25.3	1996.2	0.387	383	193
4×70	29.4	2819	0.268	434	245
4×95	32.8	3861.6	0.193	488	302
4×120	36.5	4804.5	0.153	539	349
4×150	40.6	5975.4	0.124	603	400
4×185	45.2	7364.2	0.0991	666	464
4×240	50.7	9560.1	0.0754	741	552
4×300	56	11928.8	0.0601	840	640

NYBY (3+1)x (4-300)mm2 0.6/1kV
cross section (mm2)	outer diameter approx.(mm)	weight of cable approx (kg/km)	maximum DC resistance at 20℃	min bending radius (mm)	current rating in air at 25℃ (A)


3×4+1×2.5	13.2	268.3	4.61	191	41
3×6+1×4	14.4	352.1	3.08	209	52
3×10+1×6	17.3	526.4	1.83	242	71
3×16+1×10	20.1	773.1	1.15	279	96
3×25+1×16	23.9	1145.3	0.727	333	130
3×35+1×16	26	1444.7	0.524	369	159
3×50+1×25	23.9	1768.2	0.387	416	193
3×70+1×35	27.9	2489.7	0.268	479	245
3×95+1×50	31.3	3399	0.193	543	302
3×120+1×70	34.6	4303.6	0.153	599	349
3×150+1×70	38.5	5212.1	0.124	675	400
3×185+1×95	42.9	6521.1	0.0991	741	464
3×240+1×120	48.1	8422.2	0.0754	824	552
3×300+1×150	53	10453.4	0.0601	944	640

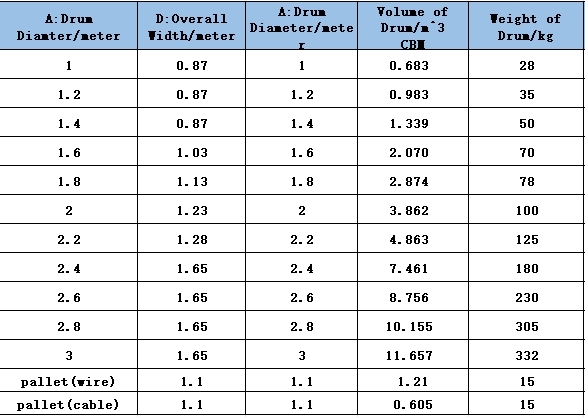

Drum Data:

Tips:

When sending us inquiry,please tell us the following details:

cable name + voltage + number of conductors x cross section + length. For example: XLPE Insulated PVC Sheathed Power Cable Flame Retardant 0.6 / 1KV CU / XLPE / PVC: 3Core x 240mm2 + 1x120mm2. Length:500 meters.
