16mm~630mm PVC Pipe Making Machine China Factory Price
Short desciption
Our PVC Water Drainage & Agricultural Drip Irrigation Hose Tube
Extrusion Production Line is a high-efficiency, fully automated
manufacturing system designed for producing durable and flexible
PVC hoses used in agricultural drip irrigation, water drainage, and
other fluid transfer applications.
This advanced production line ensures precise diameter control,
uniform wall thickness, and high-quality surface finish, making it
ideal for manufacturing corrugated, smooth, or perforated PVC tubes
with excellent pressure resistance and long-term durability.
Tech Features & Advantages
1.The production line is used in producting pvc reinforced pipe,
which is widely used in the fields of industry,agriculture, forest,
architecture etc.
2.With different dies,it can produce different soft pipes.The PVC
Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake
skin pipe, is widely used to convey the middle pressure or
corrosive gas and liquid.
3.Now it is widely used in such fields as mechanical engineering,
coal min, petroleum, chemical industry, agriculture irrigation and
civil applications (solar water heater or gas-canisters). At the
present time, it is widely used to the irrigation pipe to the
garden and lawn.
Producting process

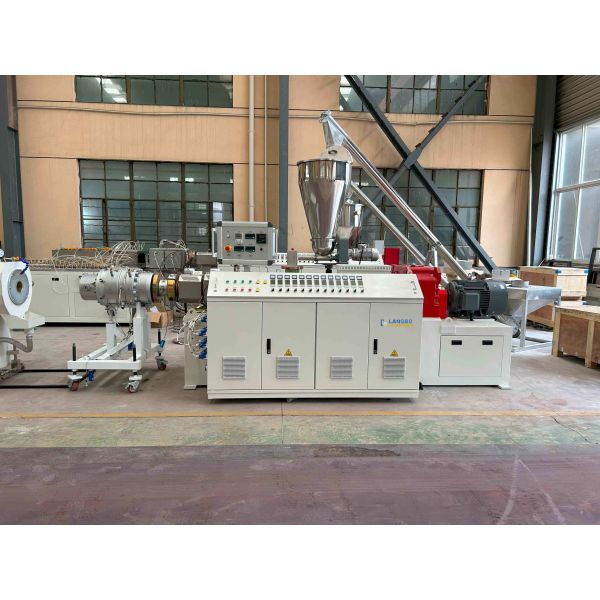

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→

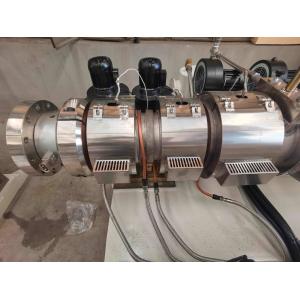

Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank →

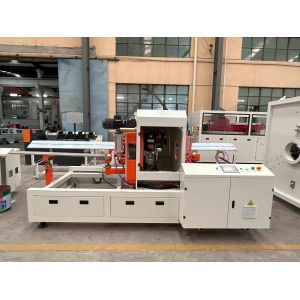

Four claws Haul-off → Planetary Saw Cutter → Belling machine/
Tripping Table → Final Product Inspecting &Packing
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Feeding
- PVC resin, stabilizers, plasticizers, and additives are mixed and
fed into the hopper of the extruder.
2. Extrusion & Melting
- The single/twin-screw extruder heats and melts the PVC mixture,
pushing it through a die head to form a continuous tube.
3. Molding & Shaping
- For corrugated hoses, the molten PVC passes through a vacuum
sizing tank and corrugator molds.
- For smooth tubes, a calibrator ensures precise diameter control.
4. Cooling & Solidification
- The shaped hose enters a water cooling tank to harden and
stabilize its structure.
5. Perforation (Optional for Drip Irrigation Hoses)
- A punching unit creates evenly spaced holes for drip irrigation
applications.
6. Traction & Length Control
- A puller maintains consistent speed, ensuring uniform hose
length.
7. Cutting & Coiling
- An automatic cutter slices the hose into desired lengths,
followed by winding into rolls or straight packing.
8. Quality Inspection & Packaging
- Final inspection for leak-proofing, pressure resistance, and
dimensional accuracy before packaging.
Technical Features:

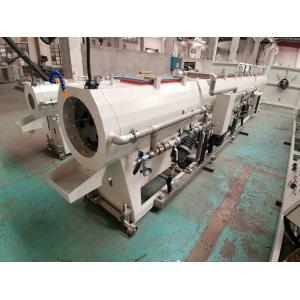

Vacuum tank is used to shape and cool pipe, so as to reach standard
pipe size. Its shape is advanced foreign multilateral
anti-deformation structure. The cover is made of high quality
casting aluminum alloy. The pipeline adopts the design of double
loop pipeline, realizing non-stop pipeline clean and function of
temperature control.

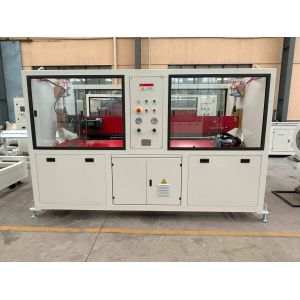

Caterpillar haul-off structure with sliding tempered glass is
beautiful and practical. Traction device with V type rubber block
caterpillar and controlled by imported inverter can steadily haul
pipe. It also features compact structure and free-maintenance.
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service
overseas.
4. After a year, we can instruct you how to maintain the machine,
and spare parts are provided with the best price.
5. We also can provide training service which help operators handle
the machine well.
