In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm
below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish

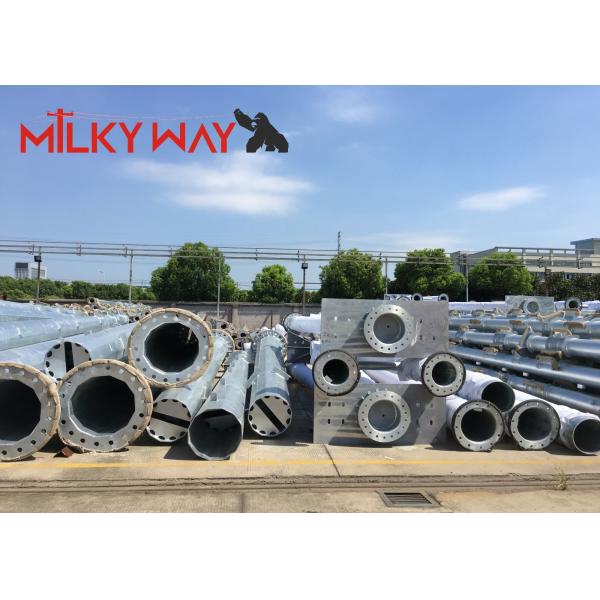

Product Gallery
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel
pole
-The method to fix the cross arm(use bolt to connect or use one or
two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
More Pictures:
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located
in Wuxi,East of China ,near one of the largest sea port of China
,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles
including the transmission power pole,street light pole,high mast
pole and so on.
We exported to oversea countries since 1991 and our products have
been delivered to more than 70 countries and areas ,including
America,Australia ,Russia ,Germany ,Span,Philippines
,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the
street light pole of Dubai Tower.the high mast pole for Sochi
Winter Olympic Game and so on.
