DAWNERGY JUMPER CABLE

Parameters

Specification

Cable Type

HCAHY(Z)-50-9(1/2"Super Flexible)

Cable

Inner Conductor Material

Copper-Clad Aluminum Wire

Dielectric

Physical Foam PE

Outer Conductor Material

Corrugated Copper Tube

Jacket

Black PE / Low Smoke Halogen-free Fire-retardant IEC 60754-1:2011

Jacket Diameter ≥13.1mm

Weight

Jumper cable, 7/16 Male-7/16 Male

straight connector with waterproof rubber boots

166 g/m

Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots

166 g/m

Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots

166 g/m

Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots

166 g/m

IP Protection Class

(Factory-terminated jumper cable)

IP68

IEC 60529:2001

Minimum bending radius

1 round ≤ 25

Many round ≤ 35

Connector

Connector Type

7/16 type Straight Male

7/16 type angle Male

4.3/10 type Straight Male

Inner Conductor Pin

(Center contact)

Brass/ Bronze Silver plated

Body & Outer Conductor

Brass/ Trimetal Plating

Insulator

PTFE

Insertion Loss

≤ 0.05* √f With f: frequency (in Ghz)

Weight

7/16 type Straight Male

41g

7/16 type Angle Male

63g

4.3/10 type Straight Male

31g

Waterproof cable boot

Material

Silicon

UV Resistance Standard

IEC-60068-2-5

Operating temperature range (^oC)

-40℃ +85℃

IP Protection Class

IP68

Jumper Length

6m ±1% or 10m±1%

Parameters

Specification

Characteristics Impedance

50±2 Ohm

Operating Frequency

≥ 8.8 (GHz)

Max Voltage

≥ 16 (kW)

Voltage between inner and outer conductor (V)

≥ 2500

Insertion loss of 6M jumper @900/1800/2600MHz

≤0.75/1.05/1.40

Insertion loss of 10M jumper @900/1800/2600MHz

≤1.18/1.67/2.27

VSWR

@DC-2200 MHz ≤1.10

@2200-2700 MHz ≤1.15

@2700-3800 MHz ≤1.18

Dynamic PIM (IM3)

IEC 62037 (dBc)

@700/900/1800/2600MHz

With Jumper Connector standard 7/16 DIN

≤-159dBc

With Jumper Connector standard 4.3-10

≤-162dBc

Insulator Resistance

≥5000MΩ

Parameters

Specification

Minimum bending radius

1 round ≤ 25

Many round ≤ 35

IP Protection Class

(Factory-terminated jumper cable)

IP68

IEC 60529:2001

Parameters

Specification

Temperature range

-40℃ +85℃

Neutral salt mist

IEC 60068-2-11(48H)

Vibration

IEC 60068-2-6

Damp heat,steady state

IEC 60068-2-3

RoHS

RoHS 2011/65/EU

UV Resistance

IEC-60068-2-5

Description

Product code

Weight (g)

Jumper cable, 7/16 Male-7/16 Male straight connector with waterproof rubber boots length 6M

DA-JPC-7.16M STC -7/16M STC-6M

1080 ±20

Jumper cable, 7/16 Male-7/16 Male straight connector with waterproof rubber boots length 10M

DA-JPC-7.16M STC -7/16M STC-10M

1750±20

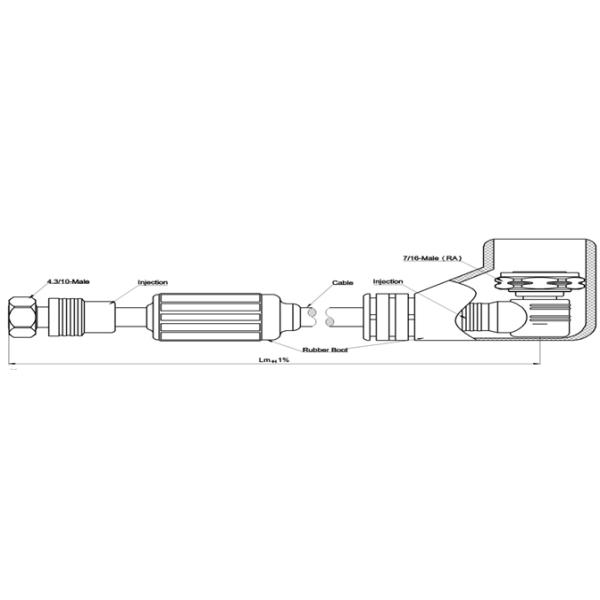

Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots Length 6M

DA-JPC-4.3-10M STC-7/16M AGC-6M

1095±20

Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots length 10M

DA-JPC-4.3-10M STC-7/16M AGC-10M

1760±20

Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots length 6M

DA-JPC-4.3-10M STC-7/16M STC-6M

1070±20

Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots length 10M

DA-JPC-4.3-10M STC-7/16M STC-10M

1740±20

Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots length 6M

DA-JPC-4.3-10M STC-4.3-10M STC -6M

1060±20

Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots length 10M

DA-JPC-4.3-10M STC-4.3-10M STC -10M

1730±20
