    SP3 Series Suction Cup

    Ask Lasest Price
    Brand Name : NBSANMINSE
    Model Number : SP3C4
    Supply Ability : 10000PCS
    Delivery Time : 5-30days
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T,L/C
    • Product Details
    • Company Profile

    SP3 Series Suction Cup

    Features
    ◇ Suction cups of same diameter among U/C/B types use same fitting
    ◇ Small size, short height
    ◇ Available in conductive material
    Advantages
    ◇ Used in various occasions, suction cups are interchangeable
    ◇ Suitable for occasions with limited space
    ◇ Discharge static electricity gently to protect workpieces from damage
    Applications
    ◇ U type suitable for workpieces with even surface and without deformation
    ◇ C type suitable for easily deformed workpieces
    ◇ B type suitable for workpieces with inclined surface
    ◇ Suitable for handling of workpieces with small size and light weight
    ◇ Conductive material suitable for 3C industry
    Structure
    ◇ Split structure for easy replacement of wearing parts
    How to order
    ◇ Note: HP material is not for all sizes. Please contact AIRBEST if need

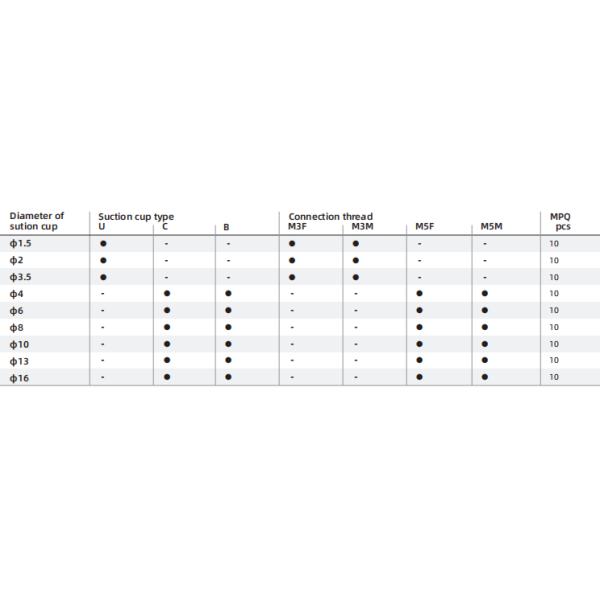

    Selection
    ◇ Note: "●" default, in stock, "-" unavailable
    Dimensions(mm) - U type
    Dimensions(mm) - C type
    Dimensions(mm) - B type
    Mounting parts
    Item
    Model
    Female thread
    Male thread
    Applicable suction cup
    Fitting for suction cup
    PJS-M3F-ST0.5
    PJS-M3M-ST0.5
    SP3U1.5, 2, 3.5

    PJS-M5F-ST1.5PJS-M5M-ST1.5SP3C4, 6, 8;SP3B4, 6, 8

    PJS-M5F-ST2PJS-M5M-ST2-ASP3C10, 13, 16;SP3B10, 13, 16
    Structure
    ◇ Consisting of replacement suction cup(3) and locking fitting(1 or 2)
    ◇ Plug-in fitting for suction cup
    ◇ Vertical vacuum port(1), male thread for mounting
    ◇ Lateral vacuum port(2), female thread for mounting
    How to order
    ◇ Please refer to page 72 for suction cup selection
    Selection
    ModelNil-Vertical
    Vacuum port connection
    Mounting threadL-Lateral
    Vacuum port connection
    Mounting thread
    SP3U1.5-3.5M3FM6MM3FM3F
    SP3C4-8M5FM10MM5FM5F
    SP3C10-16M5FM12MM5FM5F
    SP3B4-8M5FM10MM5FM5F
    SP3B10-16M5FM12MM5FM5F
    Dimensions(mm) - U type
    Dimensions(mm) - C type
    Dimensions(mm) -B type
    Mounting parts
    ItemModel Vertical direcionLateral directionApplicable suction cup
    Locking fittingPJF-M3F-M6M-ST0.5PJF-LM3F-M3F-ST0.5SP3U1.5,2,3.5

    PJF-M5F-M10M-ST1.5PJF-LM5F-M5F-ST1.5SP3C4,6,8;SP3B4,6,8

    PJF-M5F-M12M-ST2PJF-LM5F-M5F-ST2SP3C10,13,16;SP3B10,13,16
    Structure
    ◇ Consisting of replacement suction cup(3) and level compensator(1 or 2)
    ◇ Plug-in fitting for suction cup
    ◇ Vertical vacuum port(1), male thread for mounting
    ◇ Lateral vacuum port(2), male thread for mounting
    How to order
    ◇ Please refer to page 72 for suction cup selection
    Selection
    Dimensions(mm) -C type
    Dimensions(mm) -U type
    Dimensions(mm) -B type
    Dimensions(mm) -B type
    Model
    Vertical rotating
    Vertical non-rotatingModel
    Lateral rotating
    Lateral non-rotatingBuffer
    stroke
    Applicable suction cup
    PSP3-I3ST0.5-M6PSP3-I3RST0.5-MBPSP3-L3ST0.5-M6PSP3-L3RST0.5-M83SP3U1.5,2,3.5
    PSP3-I6ST0.5-M6PSP3-I6RST0.5-MBPSP3-L6ST0.5-M6PSP3-L6RST0.5-M86
    PSP3-135T1.5-M8PSP3-13RST1.5-MBPSP3-L35T1.5-M8PSP3-L3RST1.5-M83SP3C4,6,8;SP3B4,6,8
    PSP3-I6ST1.5-M8PSP3-I6RST1.5-MBPSP3-L65T1.5-M8PSP3-L6RST1.5-M86
    PSP3-I10ST1.5-M8PSP3-I10RST1.5-M8PSP3-L10ST1.5-M8PSP3-L10RST1.5-M810
    PSP3-I15ST1.5-M8PSP3-I15RST1.5-M8PSP3-L15ST1.5-M8PSP3-L15RST1.5-M815
    P5P3-I20ST1.5-M8PSP3-I20RST1.5-M8PSP3-L20ST1.5-M8PSP3-L20RST1.5-M820
    PSP3-I3ST2-M8PSP3-I3RST2-M8PSP3-L3ST2-M8PSP3-L3RST2-M83SP3C10,13,16;SP3B10,13,16
    PSP3-I6ST2-M8PSP3-I6RST2-M8PSP3-L6ST2-M8PSP3-L6RST2-M86
    PSP3-I10ST2-M8PSP3-I10RST2-M8PSP3-L10ST2-M8PSP3-L10RST2-M810
    PSP3-I15ST2-M8PSP3-I15RST2-M8PSP3-L15ST2-M8PSP3-L15RST2-M815
    PSP3-I20ST2-M8PSP3-I20RST2-M8PSP3-L20ST2-M8PSP3-L20RST2-M820
