Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port
10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Advantages
► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in
dual modes
► Complies with IEEE 802.3bt PoE Standard
► Up to 4 ports of IEEE 802.3bt/at/af devices powered
► Up to 360-watt PoE budget
► Supports PoE power up to 95 watts for each PoE port
► Supports DIN-Rail installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
► 48~57V DC redundant power with reverse polarity protection
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

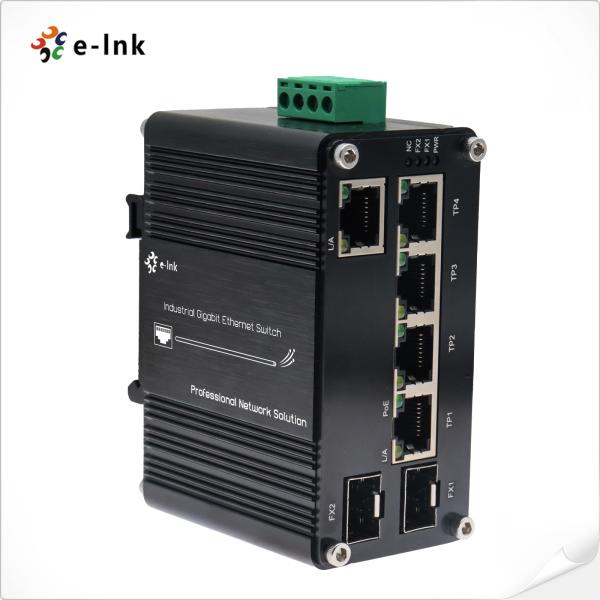

E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with
4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a
maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and
2*100/1000 dual rate SFP slots for fiber connection.
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH
technology, it is capable to source up to 95 watts of power by
using all the four pairs of standard Cat5e/6 Ethernet cabling to
deliver power and full-speed data to each remote PoE compliant
powered device (PD). It possesses triple amount of power capability
than the conventional 802.3at PoE+ and is an ideal solution to
satisfy the growing demand for higher power consuming network PDs,
such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one)
touch PCs, point of sale (POS) and information kiosks, Remote
digital signage displays and PoE lightings.
The LNK-IMC205GHP-SFP is IP40 rated and DIN-rail mountable. It also
provides high EFT and ESD protection for industrial networking
applications, such as power/utility, water wastewater,
oil/gas/mining, factory automation, security surveillance, ITS and
any other outdoor or harsh environment.
Application
Ordering Information
Model | Description |
LNK-IMC205GHP-SFP | Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port
10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. |
Mounting Options | ► Default DIN-Rail Bracket installed; |
Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal
Block. |
► Power Supply is to be purchased separately |
Dimension & Size
