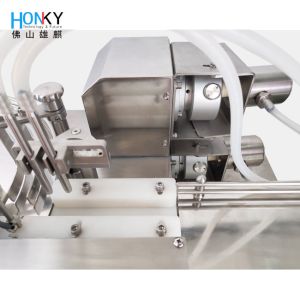

Desktop Automatic Small Vial Liquid Filling Machine High Speed
Filling System With Double Ceramic Piston Pump For Cosmetic Liuqid
Filling
Characteristic of Desktop Automatic Small Vial Liquid Filling Machine
Intelligent Control System
·Equipped with a state-of-the-art touchscreen HMI (Human-Machine
Interface)
·Programmable logic controller (PLC) enables precise operation
parameter settings
·Automated self-diagnosis system for real-time monitoring and fault
detection
High-Precision Ceramic Pump System
·Features premium-grade ceramic pump components for exceptional
chemical resistance
·Precision liquid volume control achieved through adjustable pump
head angle (0-360° adjustable)
·Delivers filling accuracy of ±0.5% with repeatability within ±0.2%
·Suitable for handling various viscosities from aqueous solutions
to semi-viscous fluids
Premium Construction Materials
·Main structure constructed with 304 food-grade stainless steel
(SUS304)
·Desktop design optimized for space efficiency in cleanroom
environments
·Electropolished surfaces meet sanitary standards with Ra ≤ 0.8μm
Universal Container Compatibility
·Specialized bottle positioning system ensures stability during
filling operations
·Adaptive clamping mechanism accommodates various container shapes
(cylindrical, square, irregular)
·Anti-tip design prevents container spillage during high-speed
operation
Quick-Change Bottle Adaptation System
·Tool-free adjustment system enables rapid format changeover (<5
minutes)
·Adjustable filling heads accommodate diameter ranges from 15mm to
120mm
·Memory function stores up to 50 different bottle parameter presets
Industrial Communication Capabilities
·Integrated Modbus RTU 485 protocol for seamless PLC integration
·RS-485 interface supports baud rates up to 115200bps
·Compatible with SCADA systems and factory automation networks
Advanced Sensor Technology
·German-made photoelectric sensors (IFM/SICK equivalent) ensure
reliable bottle detection
·No-bottle-no-fill function prevents product waste and maintains
cleanliness
·Redundant sensor array guarantees 99.9% detection accuracy
Technical parameters of Desktop Automatic Small Vial Liquid Filling Machine
| Model | XQZPG-2B Double channel |
| Pump head | High purity ceramics |
| Filling accuracy | ≦±0.25% |
| Filling range | 0.5-2ml | 1.5-5ml | 3-10ml | 2-25ml | |
| Bottle Diameter | 12-78mm |
| Manufacturing speed | 40-80 PCS/min |
| Size of Host Machine | 1130*430*240(mm) |
| Power | AC 220V 50-60Hz 650W |
Product display of Desktop Automatic Small Vial Liquid Filling Machine
4000 BPH Desktop Essential Oil High Speed Filling Machine With
Round Bottle Feeder For Cosmetic
Product diaplay: Totally desktop design to cut down the space cost
and make the operation easily.
Automatic dual-channel bottle loading, multi-head filling. Suitable
for a variety of standing stability products.
The machine is made of stainless steel 304. AndThe size of the
machine can be customized according to the customer’s need.
The filling part adopts the precision ceramic pump developed
independently, and the repeated accuracy can reach ±0.3%.
